Powering Cart Clutches and Lights Cart clutches and lights are powered by connecting cable plug to 7-terminal outlet at the rear of the tractor. Tractor's electrical outlet circuit has a 30-amp fuse that protects the cart components.

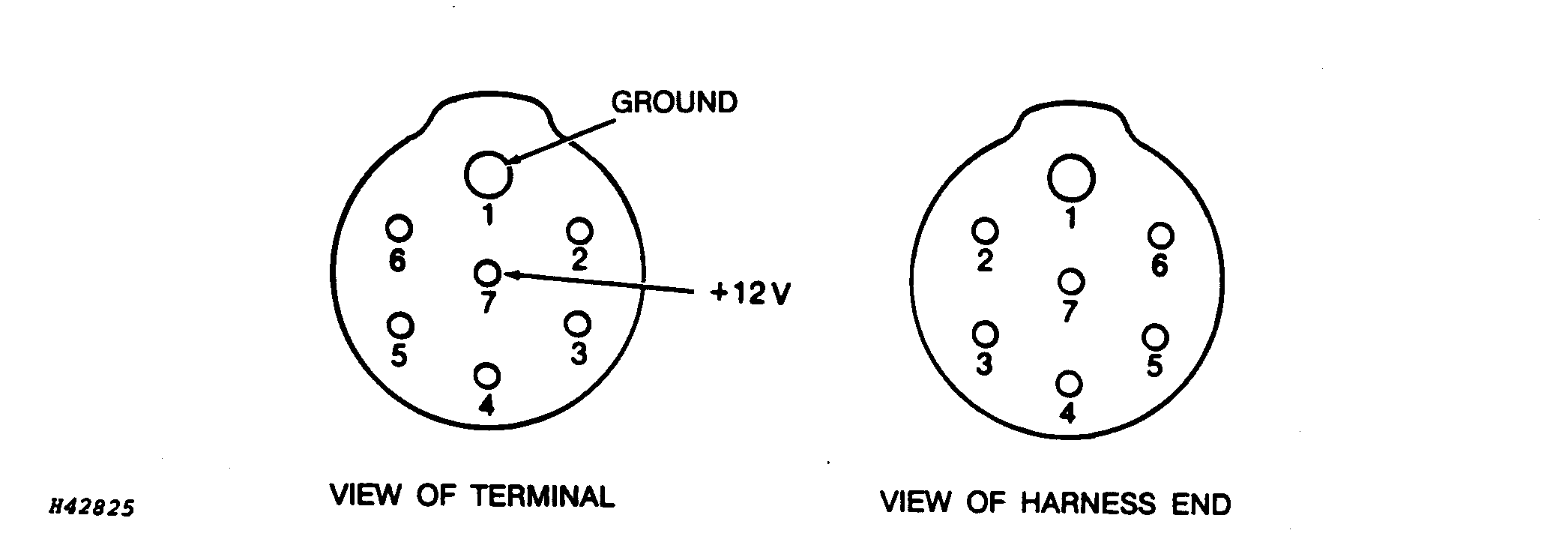

1-Ground 2-Clearance

3-Left Turn Signal 4-12-Volts

5-Right Turn Signal 6-Tail Lights

7-12-Volts

NOTE: Field installation of 7-Terminal Auxiliary Electric Kit RE17282 is required if towing tractor is not equipped with an electrical outlet. See your John Deere dealer for installation. NOTE: Not all tractor manufacturers connect pins 4 and 7 to power (+12V). Ford, Case (4WD),

and older Cat Challenger tractors are known to leave power off these two pins. Pin 7 must be powered to operate clutches. Pin 4 provides power to the Aux 4 auxiliary power connector located near the cart controller.
