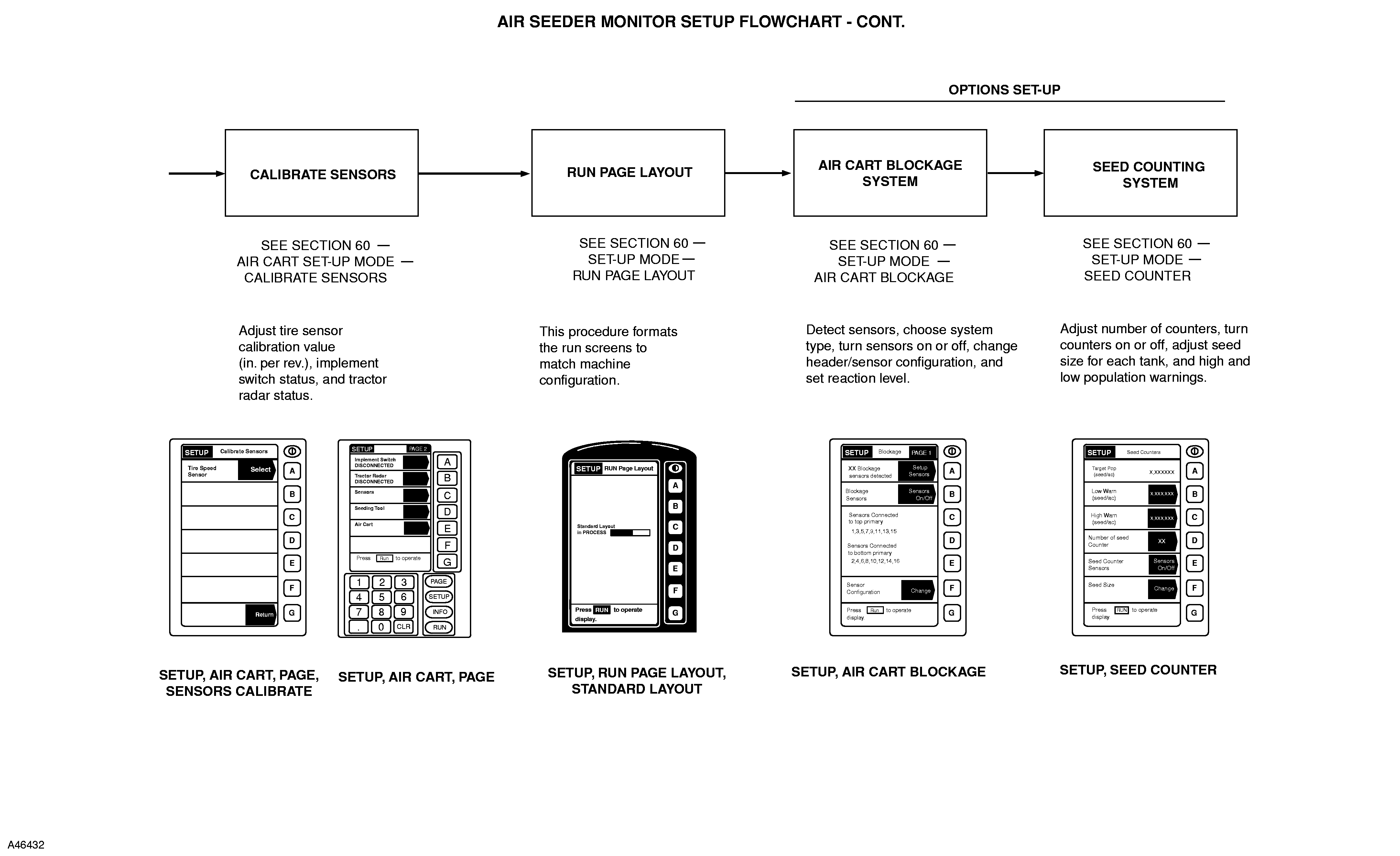

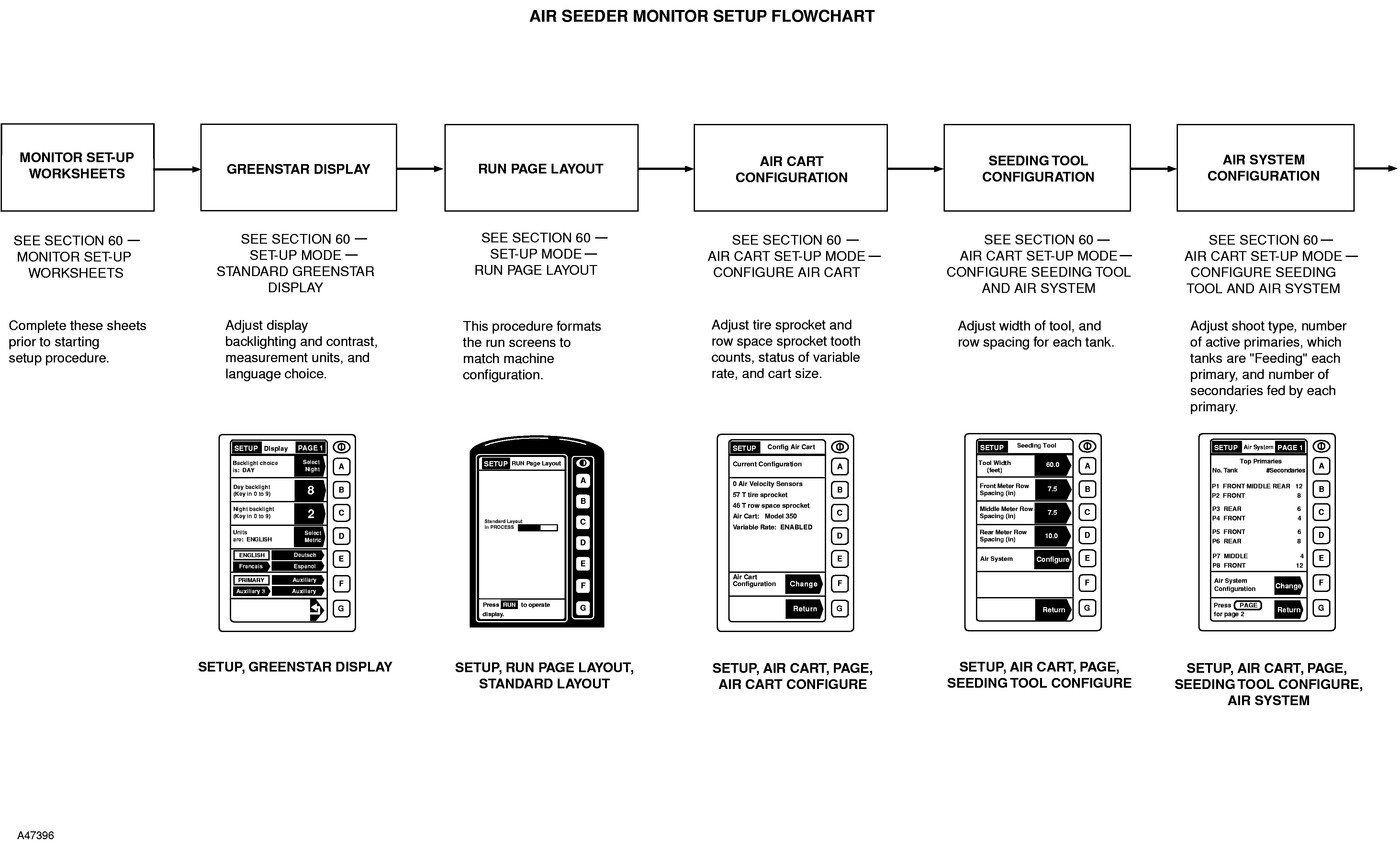

Monitor Set-Up Flow Charts

The following flow charts will help the user to understand the set-up processes of the monitor system. Each phase of the process flow chart includes up to five parts; Section Title, Instruction Location, Brief Description, Working Screen, and Buttons to be Selected.

OUO6023,0001393 -19-21FEB01-1/3

OUO6023,0001393 -19-21FEB01-2/3

OUO6023,0001393 -19-21FEB01-3/3
