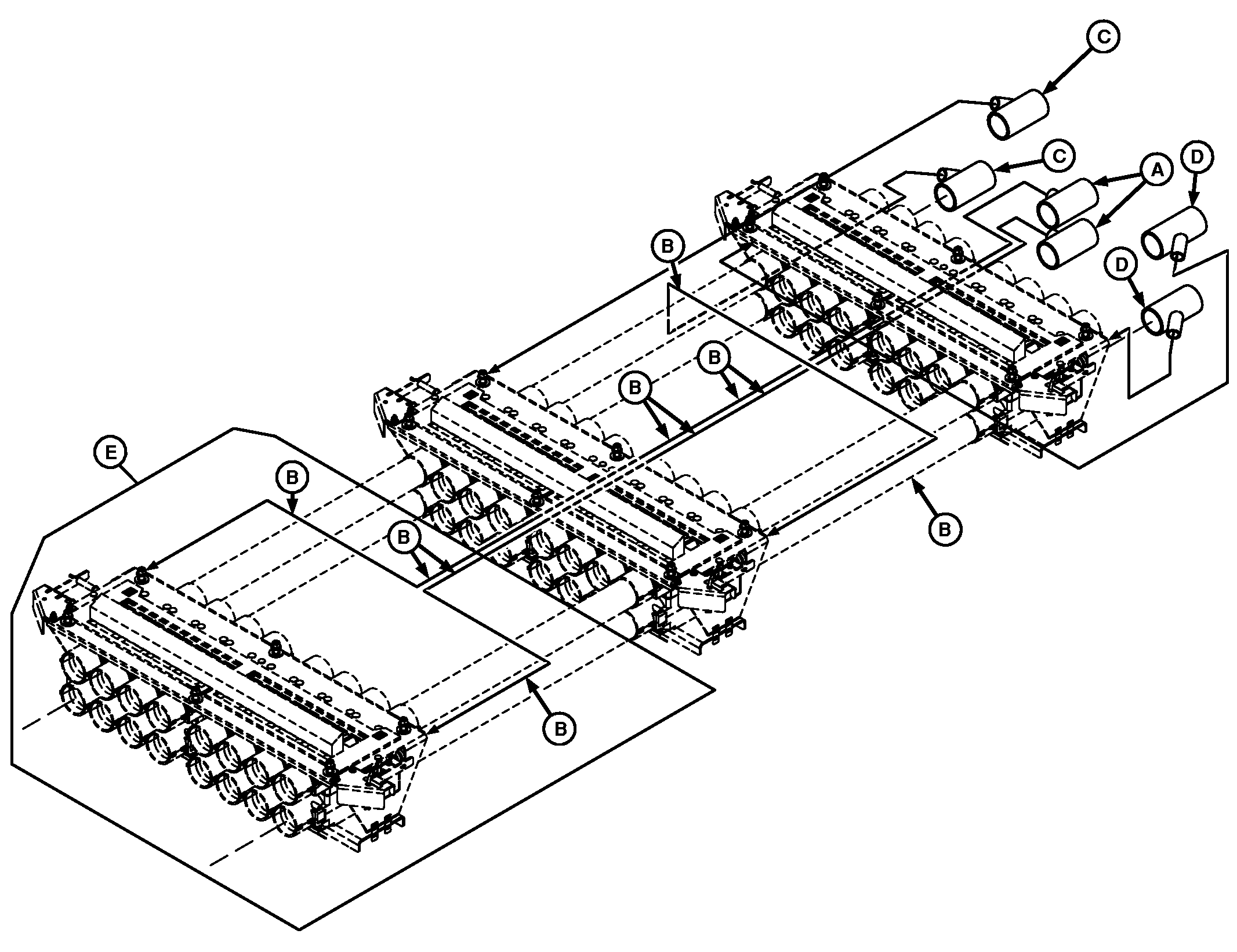

A-90° End Tube-Middle Tank Models Only

B-Tie Strap Location
C-90° End Tube-Two Tank Models, 30° End Tube-Middle Tank Models

D-30° End Tube

E-Middle Tank Models Only

IMPORTANT: Attach pressurization hoses to primary tubes. Lateral routing of pressurization hose to be directly behind 1st and 2nd manifolds.

IMPORTANT: End tube (C) will have a 90° elbow on two tank carts and a 30° elbow on three tank carts.
