Meter Cartridge/Seeding Tool Diagram-1810 Air Seeding Tools (3-Section)

A49267


A-7-Port Header/5 Tuning Rings
B-8-Port Header/4 Tuning Rings


C-9-Port Header/3 Tuning Rings
D-10-Port Header/2 Tuning Rings


E-Install Doors
F-11-Port Header/1 Tuning Rings


G-12-Port Header/0 Tuning Rings

OUO6076,0000195 -19-10APR02-1/2

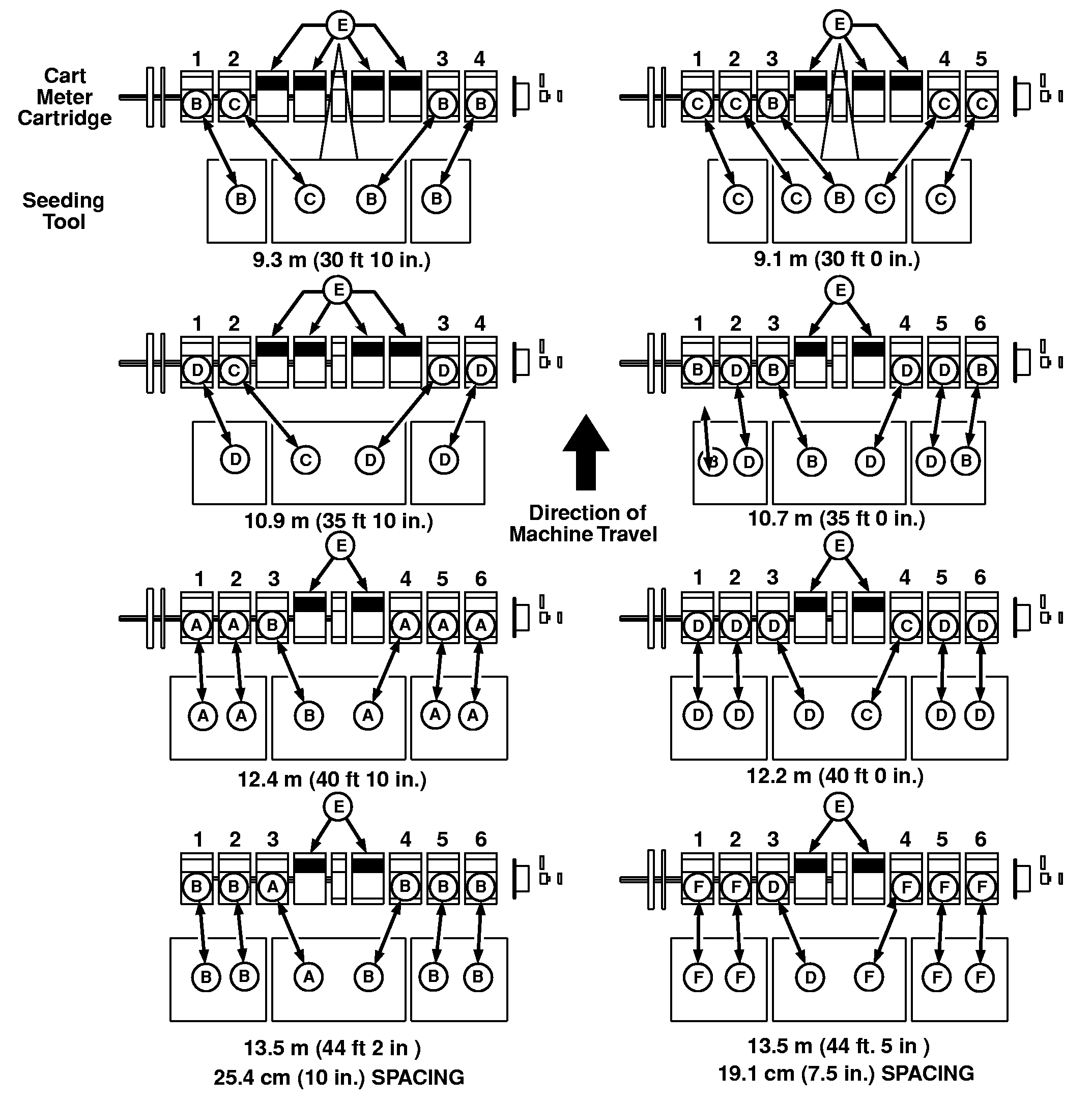

A49044


A-8-Port Header/4 Tuning Rings
B-9-Port Header/3 Tuning Rings


C-10-Port Header/2 Tuning Rings
D-11-Port Header/1 Tuning Rings


E-Install Doors


F-12-Port Header/0 Tuning Rings

OUO6076,0000195 -19-10APR02-2/2
