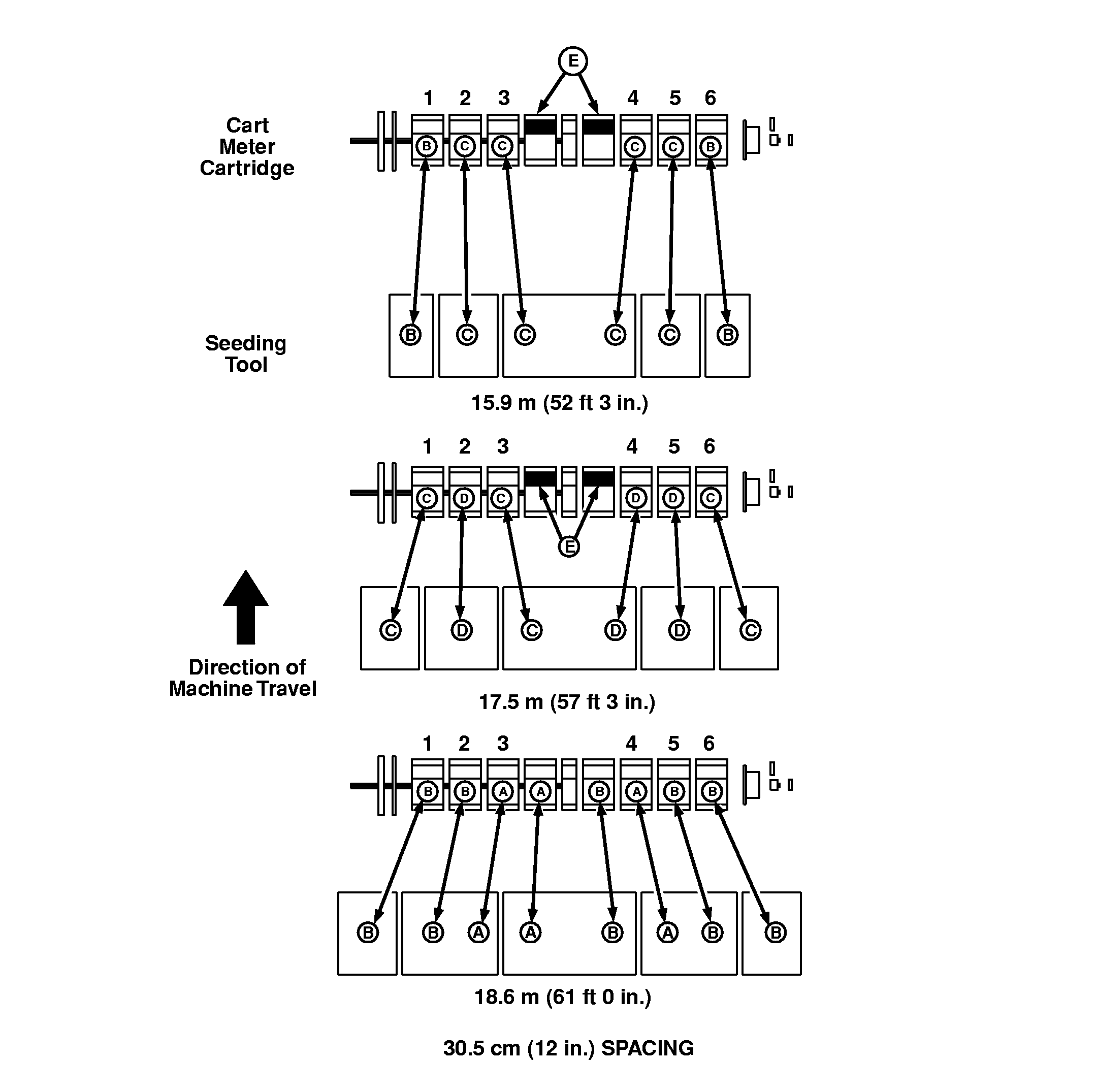

Meter Cartridge/Seeding Tool Diagram-1810 Air Seeding Tools (5-Section)

A49266


A-7-Port Header/5 Tuning Rings
B-8-Port Header/4 Tuning Rings


C-9-Port Header/3 Tuning Rings


D-10-Port Header/2 Tuning Rings


E-Install Doors

OUO6076,0000196 -19-10APR02-1/2

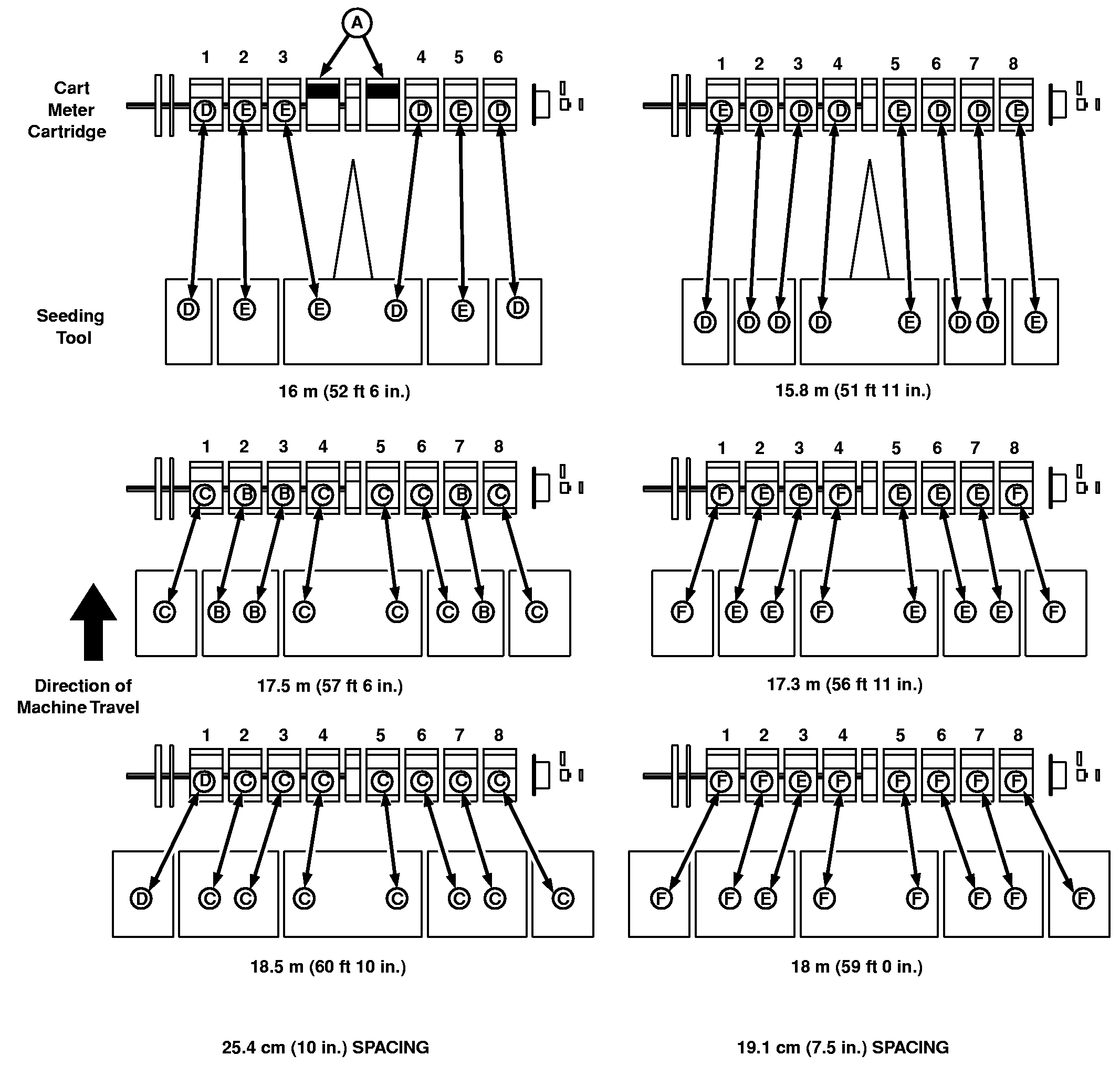

A46815


A-Install Doors
B-8-Port Header/4 Tuning Rings


C-9-Port Header/3 Tuning Rings
D-10-Port Header/2 Tuning Rings


E-11-Port Header/1 Tuning Rings


F-12-Port Header/0 Tuning Rings

OUO6076,0000196 -19-10APR02-2/2
