Tank Open Indicator Gauge

IMPORTANT: Do not seed with gauge in the red zones (A, E).

IMPORTANT: If gauge is in the green zone (C) it means the tanks are sealed and operating correctly. It does not mean that the air seeder is seeding correctly. Check meter calibration and settings before seeding.

Read gauges when:

  • There is seed in the tank
  • Not seeding in the field
  • Half-width disconnect handles down

Gauge reading to the (-) lid open (A, B) indicates a danger of skips while seeding.

Gauge reading to the (+) check gauge (D, E) indicates a danger of over seeding.

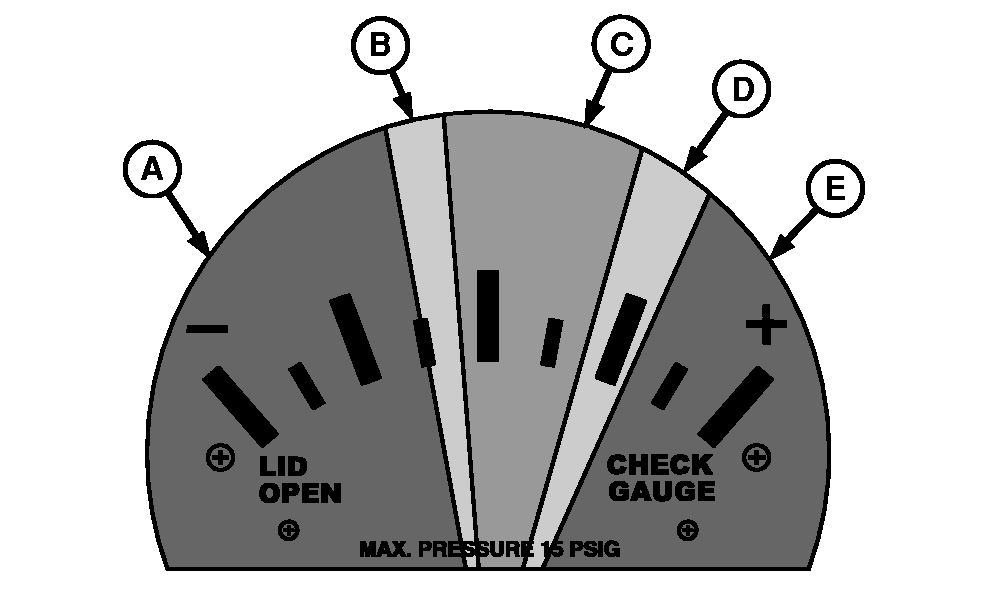

A49377


A-Lid Open (Red Zone)
B-Lid Open (Yellow Zone)
C-Green Zone
D-Check Gauge (Yellow Zone)
E-Check Gauge (Red Zone)
