Caution Warning Messages and Reactions-Seed Counters and Blockage
|
|
IMPORTANT: Audio alarm will sound when a full page WARNING is displayed. If WARNING message is cancelled, audio alarm will sound again and a |
similar caution message will display at the bottom of RUN Page 1. |
| [!] Warning Message-Seed Counter | Cause | Solution |
|---|---|---|

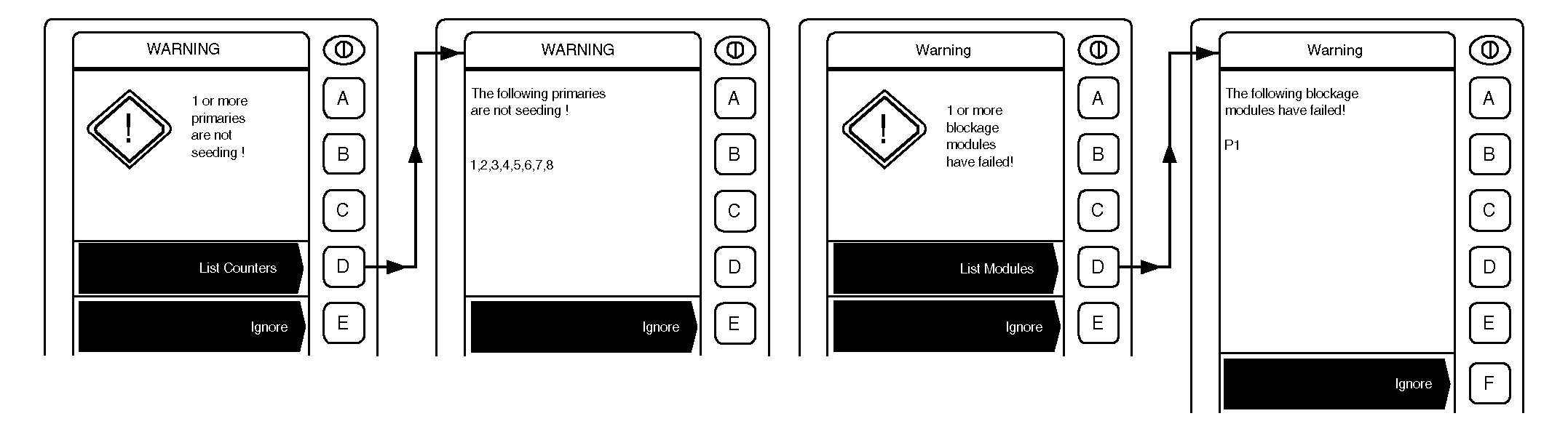

| [!] One or more primaries are not seeding! Press "List Counters". The following primaries are not seeding! Primary ID Numbers. | One or more active sensors are counting below five seeds-per-second; sensors listed by primary ID number. NOTE: Warning clears automatically if rate goes above 15 seeds-per-second. |
Check for product in tank. Check for plugged primary lines. Check for plugged slide or manifold bypass openings. Press "Ignore" to deactivate non-seeding primaries. Sensors are reactivated by turning meter or main drive clutch off and on (like when row end is reached). Sensors can also be turned off in the SETUP section of the Seed Counters. |
OUO6076,0000229 -19-03MAY01-1/2 |
| [!] Warning Message-Blockage Monitor (All Run or Primary Only) | Cause | Solution |
|---|---|---|
| [!] One or more blockage modules have failed. Press "List Modules". The following blockage modules have failed! Primary ID numbers. | One or more previously detected modules cannot be detected now. NOTE: Warning clears automatically if module is detected. |
Press "INFO" to review system set-up. Check for broken wires or disconnected modules. Check for damaged modules. Press "Ignore" or turn sensors OFF to deactivate non-working modules. Modules are reactivated by turning meter or main drive clutch off and on (like when row end is reached). |
| [!] One or more secondaries are blocked! Press "List Sensors". The following secondaries are blocked! Primary and RUN ID Numbers. | One or more active sensors is blocked. NOTE: Warning clears automatically if blockage goes away. |
Check for product in tank. Check for line blockage or partial blockage. Check for plugged slide or manifold bypass openings. Press "INFO" to review Hit Counter. Press "Ignore" to deactivate blocked sensors. Sensors are reactivated by turning meter or main clutch off and on (like when row end is reached). Sensors can also be turned off in the SETUP section of the Air Cart Blockage. |
OUO6076,0000229 -19-03MAY01-2/2 |
