Adjusting Meter Hub

If gap is too large or disk turns too hard, adjust meter hub as follows:

1. Open vacuum meter. See ACCESSING THE VACUUM METER in this section.

AG,OUO6074,1179 -19-04AUG00-1/4

2. Turn hub handle (A) counterclockwise. Remove seed disk (B) from housing.


A-Hub Handle
B-Seed Disk

H44402

AG,OUO6074,1179 -19-04AUG00-2/4

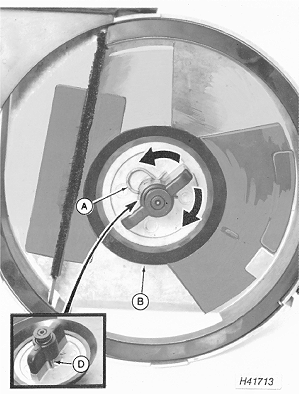

3. Remove spring locking pin (A).

4. Adjust hub (B) as follows:

a. Hold meter flex-drive (C).

b. Turn hub clockwise to move seed disk closer to meter housing or counterclockwise to move seed disk further from meter housing.

5. Turn hub until slot (D) aligns with hole in shaft and install spring locking pin (A).


A-Pin
B-Hub
C-Flex-Drive
D-Slot

H41713
H44310

AG,OUO6074,1179 -19-04AUG00-3/4

6. Fit seed disk (A) into housing. Hold seed disk stationary and rotate hub handle (B).

NOTE: Seed disk should turn smoothly with light contact or a small gap between seed disk (A) and meter housing. Seed should not leak around circumference of meter. When planting small seed such as sorghum or sugar beets, seed disk must lightly contact meter housing to prevent seed leakage.

7. Turn seed disk by hand and check gap between seed disk and meter housing in section (C). If disk turns too hard or if seed leaks through gap, repeat procedure.

H44514


A-Seed Disk
B-Hub Handle
C-Section

AG,OUO6074,1179 -19-04AUG00-4/4
