Adjusting Closing Wheel Spacing

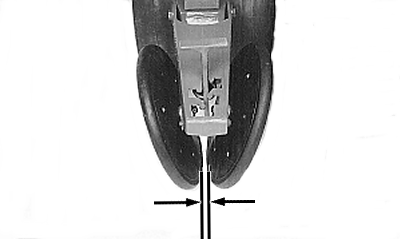

NOTE: Spacing between closing wheels is adjustable, so closing system can be tailored to meet the requirements of planting small seeds at shallow depths.

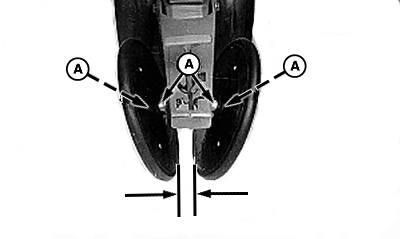

To change spacing, remove nuts and spacers (A). Install closing wheels with spacers located to the outside (for narrow spacing) or to the inside (for wide spacing).

A-Nuts and Spacers

AG,OUO6074,1205 -19-04AUG00-1/1
