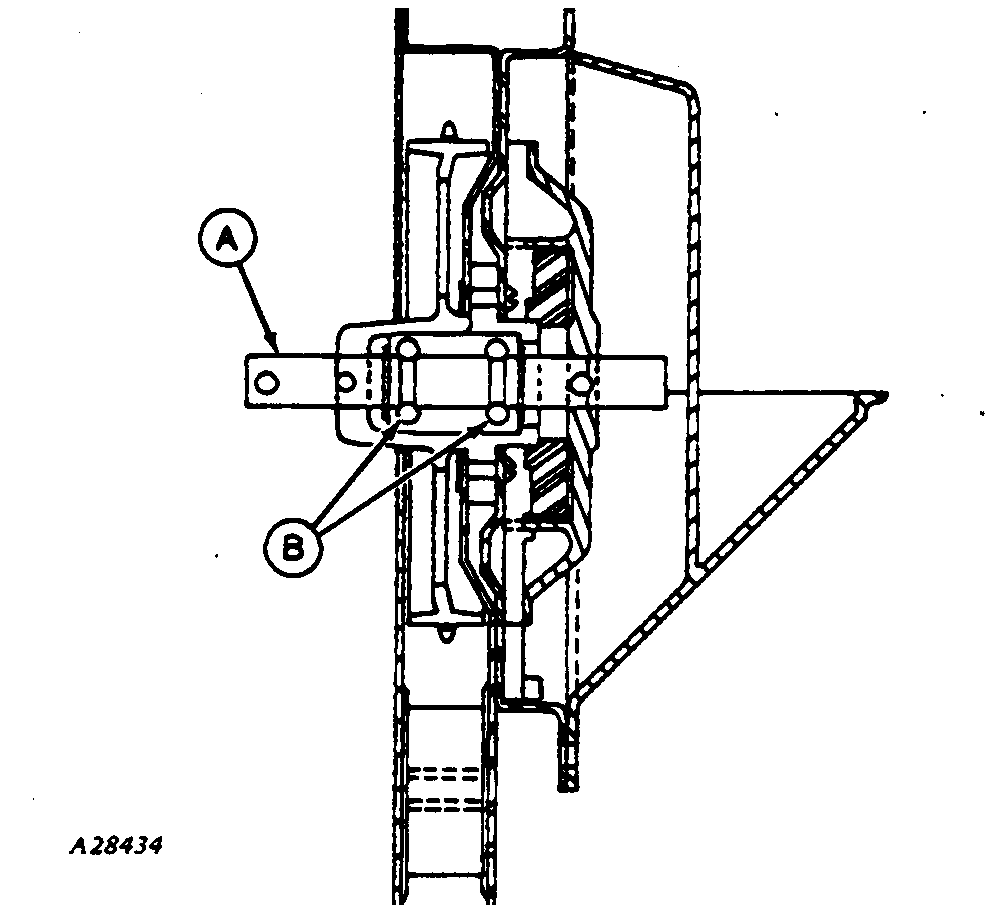

Drive Shaft Bearing-Finger Pick-Up MeterThe finger pick-up drive shaft (A) has a sealed double-row ball bearing (B) designed to give years of dependable service. To remove drive shaft and bearing from belt housing, remove driver wheel and three face plate screws.
|
|
AG,OUO6074,1372 -19-04AUG00-1/1 |
