Adjusting Marker Disk

The marker disk creates a furrow in the soil. This adjustment will change the size of furrow.

AG,OUO6074,1525 -19-07AUG00-1/2

  • 16 Inch Disk:

    Loosen nuts on cap screws (A), adjust disk angle and tighten nuts on 406 mm (16 in.) notched disk to specification.

Specification

Cap Screw -Torque 240 N·m (175 lb-ft)

  • 13 Inch Disk:

    Loosen nuts on cap screws (A), adjust disk angle and tighten nuts on 330 mm (13 in.) disk to specification.

Specification

Cap Screw -Torque 95 N·m (70 lb-ft)

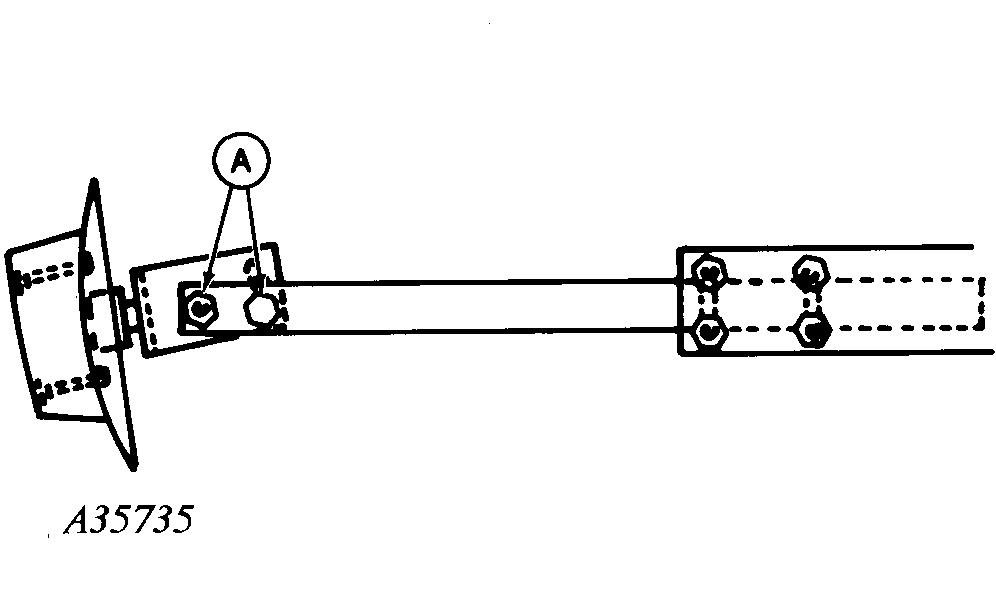

A35735


A-Nut
