Marker Float Range
|
|

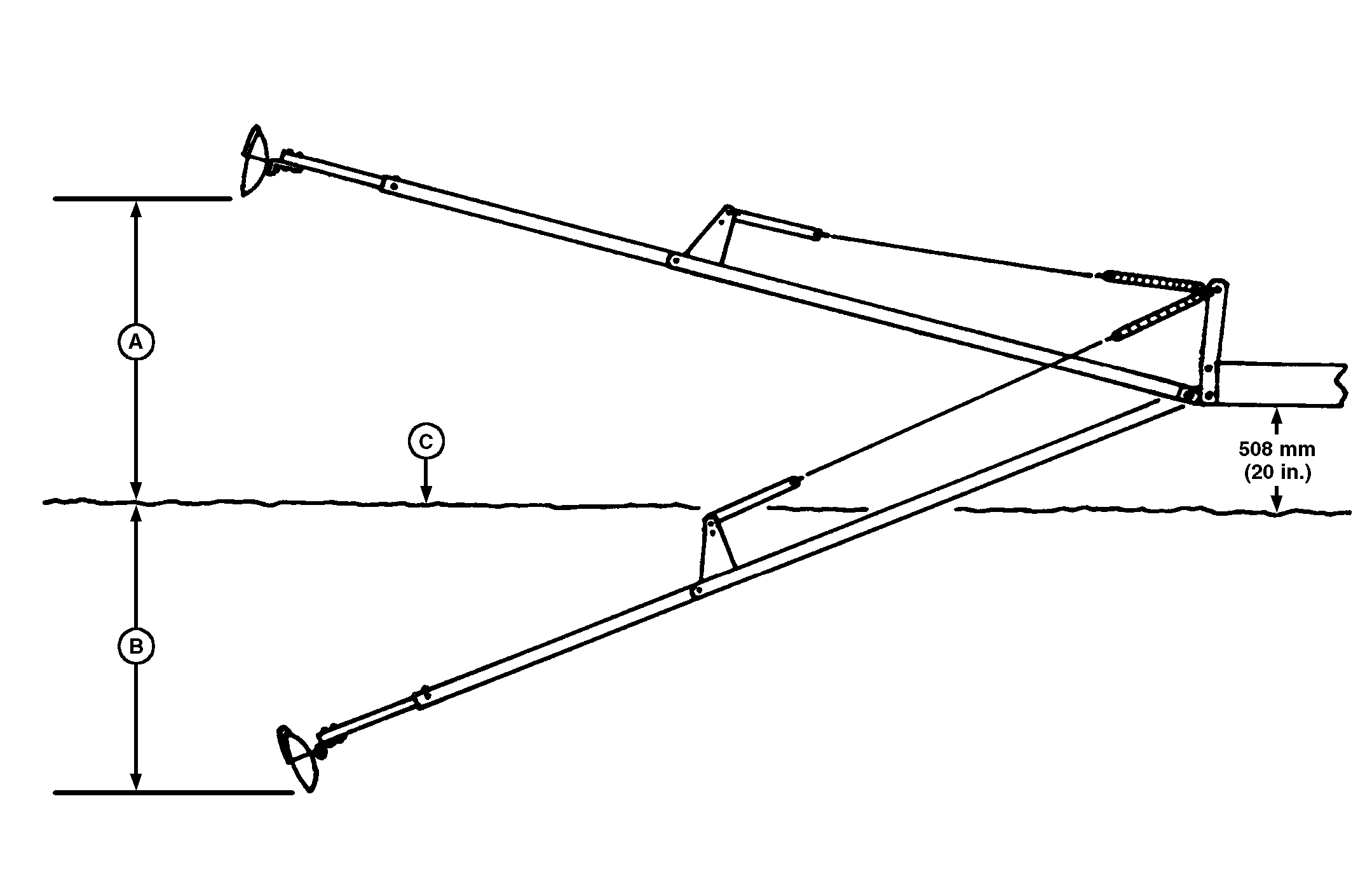

The marker has an approximate float range (see chart below) which should not be exceeded, such as, when planting near drainage ditches or hillsides. Exceeding this float range can result in damage to the marker inner arm. If this range must be exceeded, raise the marker by using the marker SCV. |
AG,OUO6076,107 -19-08JUN00-1/2 |
| MACHINE FRAME SIZE | NUMBER OF ROWS | ROW SPACING | DIMENSION "A" | DIMENSION "B" |
|---|---|---|---|---|
| 1780 11 ROW 15 INCH | 4 | 91 cm (36 in.) | 698 mm (27.5 in.) | 393 mm (15.5 in.) |
| 1780 11 ROW 15 INCH | 4 | 38 cm (15 in.) | 584 mm (23 in.) | 190 mm (7.5 in.) |
| 1780 11 ROW 15 INCH | 9 | 46 cm (18 in.) | 622 mm (24.5 in.) | 266 mm (10.5 in.) |
| 1780 11 ROW 15 INCH | 9 | 48 cm (19 in.) | 660 mm (26 in.) | 330 mm (13 in.) |
| 1780 11 ROW 15 INCH | 6 | 70 cm (27.5 in.) | 698 mm (27.5 in.) | 393 mm (15.5 in.) |
| 1780 11 ROW 15 INCH | 6 | 76 cm (30 in.) | 698 mm (27.5 in.) | 393 mm (15.5 in.) |
| 1780 11 ROW 15 INCH | 11 | 38 cm (15 in.) | 635 mm (25 in.) | 279 mm (11 in.) |
| 1780 15 ROW 15 INCH | 6 | 91 cm (36 in.) | 724 (28.5 in.) | 444 mm (17.5 in.) |
| 1780 15 ROW 15 INCH | 6 | 96 cm (38 in.) | 774 (30.5 in.) | 533 mm (21 in.) |
| 1780 15 ROW 15 INCH | 11 | 46 cm (18 in.) | 724 (28.5 in.) | 444 mm (17.5 in.) |
| 1780 15 ROW 15 INCH | 11 | 48 cm (19 in.) | 774 (30.5 in.) | 533 mm (21 in.) |
| 1780 15 ROW 15 INCH | 8 | 76 cm (30 in.) | 825 (32.5 in.) | 635 mm (25 in.) |
| 1780 15 ROW 15 INCH | 15 | 38 cm (15 in.) | 762 (30 in.) | 520 mm (20.5 in.) |
