Changing Planting Rate Sprocket Combinations-Seed Transmission

Consult appropriate planting rate chart to determine desired sprocket combinations.

AG,OUO6076,129 -19-08JUN00-1/2

1. Remove retaining hook (A) from storage position.

2. Pull chain tightener (B) downward and place hook (A) on tightener.

3. Remove required number of rubber sprocket spacers (C).

4. Remove chain from sprockets. Slide desired driver sprocket (E) and driven sprockets (D) into alignment with chain tightener and replace chain.

5. Remove hook from chain tightener. Reposition hook in storage position by pressing into clip.

6. Replace rubber sprocket spacers on upper and lower shafts.

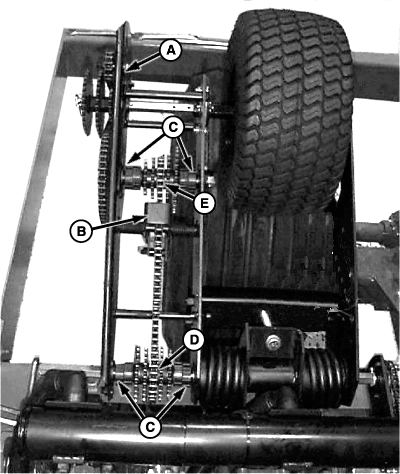

A-Hook
B-Chain Tightener
C-Spacers
D-Driven Sprocket
E-Driver Sprocket
