Setting Pump Drive Range

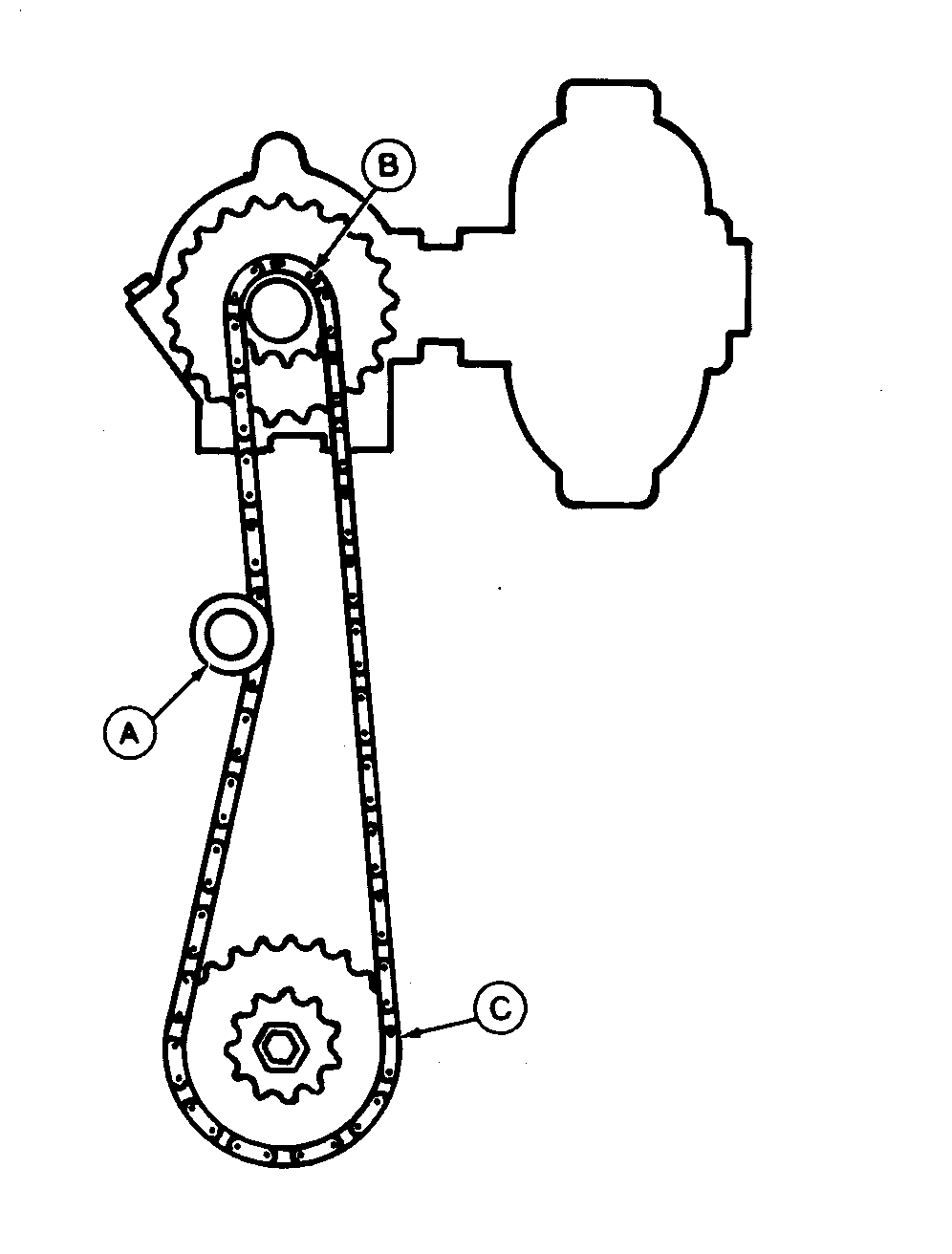

1. To place pump in HIGH DRIVE range, loosen roller idler (A). Move chain to (driven) 16-tooth sprocket (B) on pump and to (drive) 35-tooth sprocket (C).


A-Roller Idler
B-Sprocket, 16-Tooth
C-Sprocket, 35-Tooth

A35430

AG,OUO6076,254 -19-08JUN00-1/2

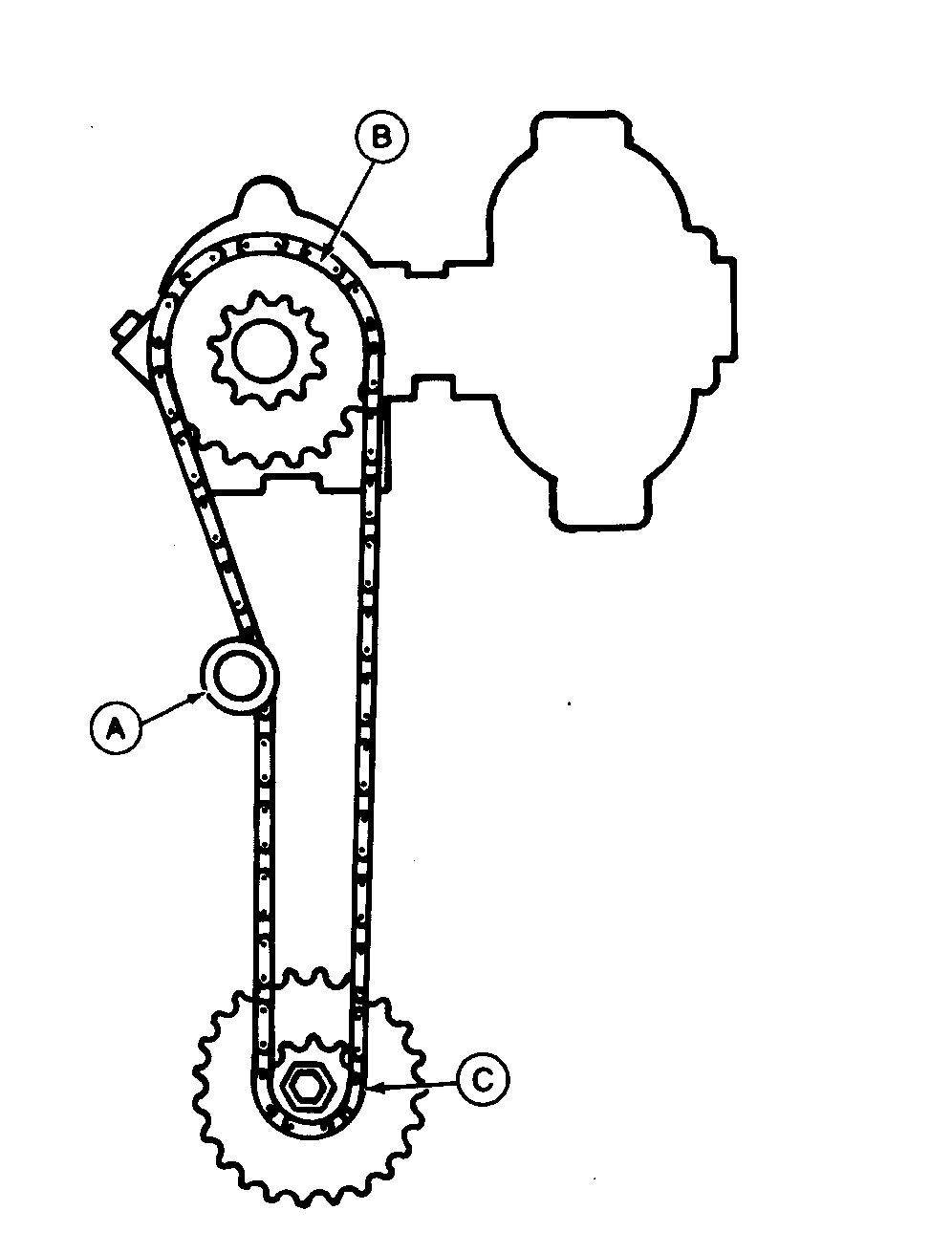

2. To place pump in LOW DRIVE range, loosen roller idler (A). Move chain to (driven) 35-tooth sprocket (B) on pump and to (drive) 16-tooth sprocket (C).


A-Roller Idler
B-Sprocket, 35-Tooth
C-Sprocket, 16-Tooth

A35431

AG,OUO6076,254 -19-08JUN00-2/2
