Cleaning Dry Fertilizer Hoppers

Disconnect couplers from augers by removing cotter pins and drilled pins (A).

A-Cotter Pin and Drill Pins

AG,OUO6076,302 -19-08JUN00-1/7

Remove clamps and disconnect fertilizer hoses (A) from hoppers.

A-Hoses

AG,OUO6076,302 -19-08JUN00-2/7

Remove hopper lock-down bolts (A).

A-Lock-Down Bolts

AG,OUO6076,302 -19-08JUN00-3/7

If equipped with auger fill attachment, loosen U-bolts (A) on auger tube supports.

A-U-Bolts

AG,OUO6076,302 -19-08JUN00-4/7

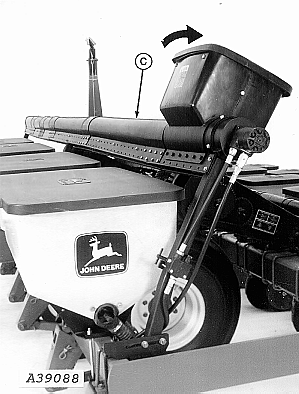

If equipped with auger fill attachment, remove marker anchor (A) from left-hand marker (B) and lower marker to the ground.

Pivot auger tube (C) rearward.

A-Marker Anchor
B-Left-Hand Marker
C-Auger Tube

AG,OUO6076,302 -19-08JUN00-5/7

Release lid fasteners and slide lids (A) rearward until they hang on edge of hopper.

A-Lids

AG,OUO6076,302 -19-08JUN00-6/7

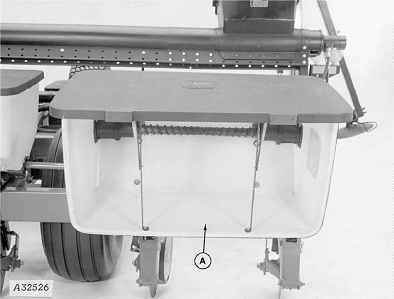

Tip hoppers (A) forward and flush all loose fertilizer from hoppers and tubes with water. Check inside of each auger housing on ends of tanks.

If necessary, clean with a wire brush.

Pivot hoppers back to operating position and replace lids.

Replace couplers on augers and secure with drilled pins and cotter pins.

Fasten hopper by replacing lock-down bolts and lock nuts.

Fasten hoses to hoppers with clamps.

Pivot auger fill tube into position over hoppers and tighten U-bolts.

Raise left-hand marker to vertical position and install anchor and clip.
