Machine Dimensions
|
| Model | Dimension Aa | Dimension B | Dimension C | Dimension Da |
|---|---|---|---|---|
| 4-Row Wide | 5.3 m (17 ft 8 in.) | 3.24 m (10 ft 7-1/2 in.) | 2.87 m (9 ft 5 in.) | 1.423 m (4 ft 8 in.) |
| 6-Row Narrow | 5.3 m (17 ft 8 in.) | 3.24 m (10 ft 7-1/2 in.) | 2.87 m (9 ft 5 in.) | 1.423 m (4 ft 8 in.) |
| a7-, 9-, 11-, 13-, and 15-Row | 5.48 m (18 ft) | |||
| aTo rear of long panel, subtract 115 mm (4-1/2 in.) To rear of closing wheels, subtract 76 mm (3 in.) | ||||
AG,OUO6076,333 -19-08JUN00-1/3 |
|
|
|

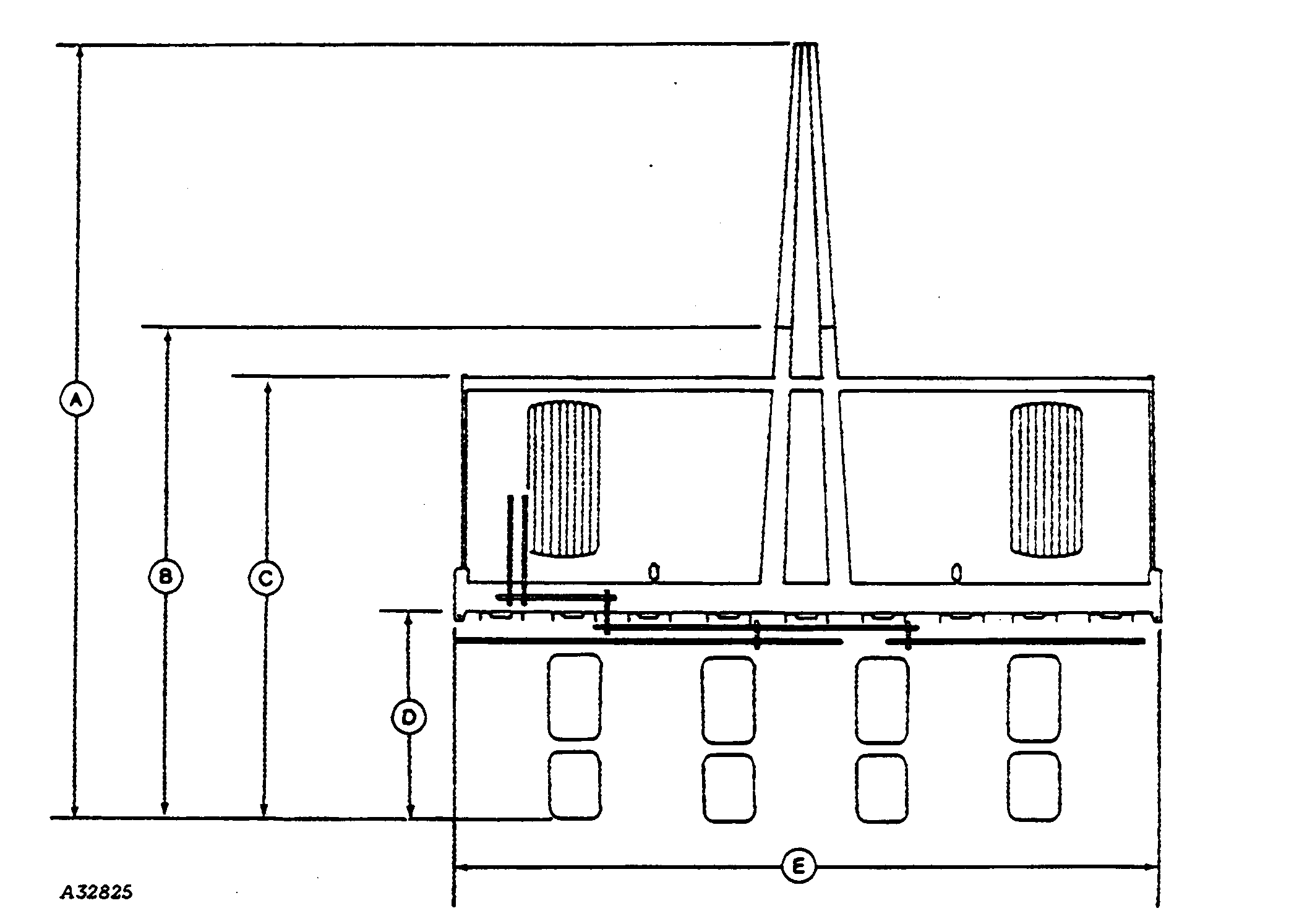

To assist in transporting or storing the machine, see diagram above, if applicable, for overall machine dimensions. |
CAUTION:
Serious injury or death can result from electric lines. Use care when moving or operating this machine near electric lines to avoid contact.
| Model | Dimension Aa | Dimension B | Dimension C | Dimension Da | Dimension E Markers in Transport |
|---|---|---|---|---|---|
| 6-Row Wide | 5.3 m (17 ft 8 in.) | 1.72 m (5 ft 8 in.) | 1.71 m (5 ft 7-3/8 in.) | 1.42 m (4 ft 8 in.) | 7.23 m (22 ft 10 in.) |
| 8-Row Narrow | 5.3 m (17 ft 8 in.) | 1.72 m (5 ft 8 in.) | 1.71 m (5 ft. 7-3/8 in.) | 1.42 m (4 ft 8 in.) | 6.96 m (22 ft 10 in.) |
| aTo rear of long panel, subtract 115 mm (4-1/2 in.) To rear of closing wheels, subtract 76 mm (3 in.) | |||||
|

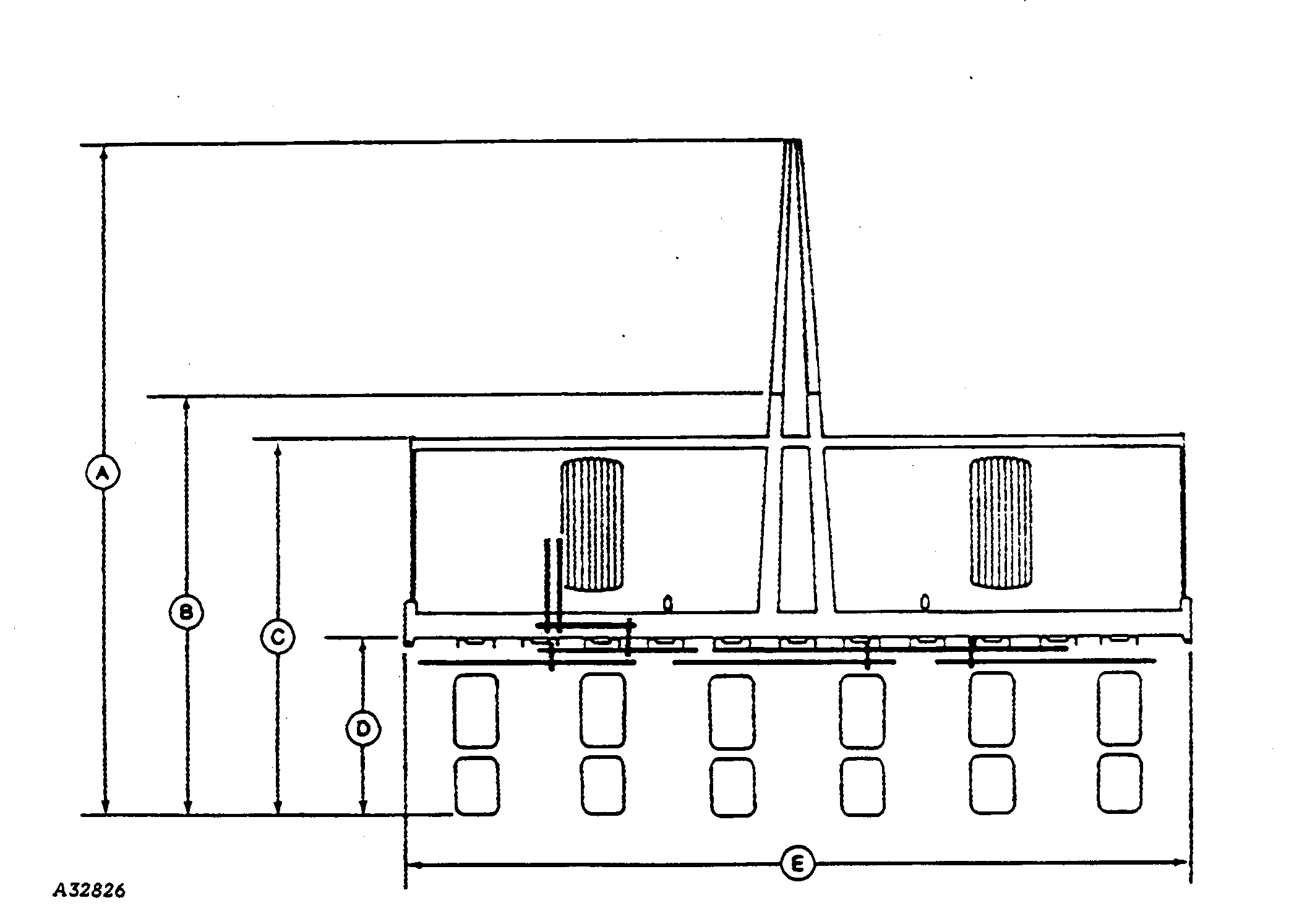

To assist you in transporting or storing your planter, see diagram above, if applicable, for overall dimensions of your planter. |
AG,OUO6076,333 -19-08JUN00-2/3 |
|

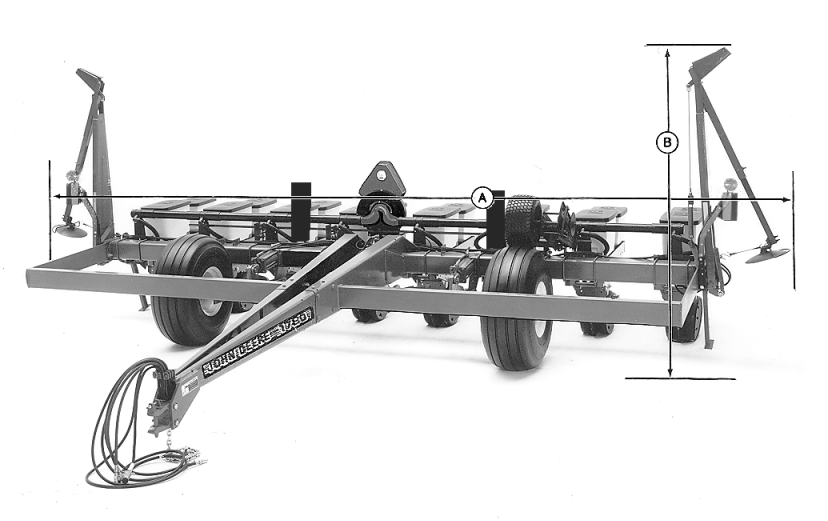

| Model | Dimension A | Dimension B |
|---|---|---|
| 4-Row Wide | 3.22 m (10 ft 11 in.) | 4.95 m (16 ft 3 in.) |
| 6-Row Narrow | 4.01 m (13 ft 2 in.) | 4.95 m (16.25 ft) |
| 6-Row Wide | 2.87 m (9 ft 5 in.) | 7.23 m (23 ft 9 in.) |
| 8-Row Narrow | 6.88 m (22 ft 7 in.) | 6.96 m (22 ft 10 in.) |
AG,OUO6076,333 -19-08JUN00-3/3 |
