The machine is available in the following row widths:

• 4-Row-91 cm (36 in.) and 97 cm (38 in.)
• 6-Row-70 cm (27.5 in.) 76 cm (30 in.), 91 cm (36 in.) and 97 cm (38 in.)
• 7-Row-46 cm (18 in.) and 48 cm (19 in.)
• 8-Row-76 cm (30 in.)
• 9-Row-38 cm (15 in.), 46 cm (18 in.) and 48 cm (19 in.)

• 11-Row-38 cm (15 in.), 46 cm (18 in.) and 48 cm (19 in.)
• 13-Row-38 cm (15 in.)
• 15-Row-38 cm (15 in.)

To change row widths proceed as follows:

1. Empty hoppers and lower the machine until double-disk seed openers rest on the ground.

OUO6074,000022D -19-21FEB01-1/4

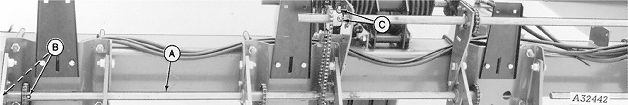

2. Remove cotter pins (A).

3. Remove drill shafts (B) from planting units.

4. Loosen all set screws (C) on jackshaft sprockets.

A-Cotter Pins
B-Drill Shaft
C-Set Screw

OUO6074,000022D -19-21FEB01-2/4

5. Loosen U-bolts (A) on planting units.

6. Measuring from the machine center line to the center of planting units, position planting units next to frame one-half the desired row spacing (B).

7. Position other planting units at the desired row spacing (C).

8. Space U-bolts approximately 318 mm (12-1/2 in.) apart. Tighten U-bolts uniformly to specifications.

Specification

A-U-Bolts
B-One-Half Row Spacing
C-Desired Row Spacing

OUO6074,000022D -19-21FEB01-3/4

9. Insert drill shaft (A) through planting unit bearings and secure with cotter pins (B).

10. Align sprockets (A) and tighten set screws (C).

11. Check all drive components for interference. Check planting unit openers to insure seed tubes and openers are free of dirt or other foreign objects.
