Leveling Machine

Periodically check the machine to be certain the planting unit parallel arms are running level.

Lower machine to planting position with the bottom of main frame tube approximately 510-560 mm (20-22 in.) above level ground.

NOTE: Raise machine to transport position before installing cylinder stops.

In soft soil conditions, it may be necessary to adjust the (planting position) frame height by installing cast cylinder stops on each wheel cylinder rod.

OUO6074,0000233 -19-01MAR01-1/3

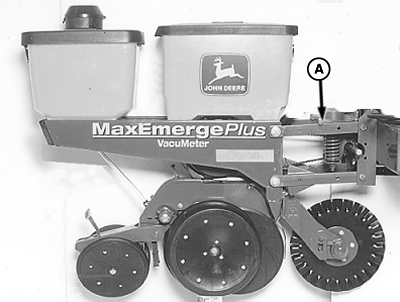

Lower machine to ground. Planting unit parallel arms (A) should be parallel with the ground. Adjust cylinder stops as needed.

A-Hopper Supports

OUO6074,0000233 -19-01MAR01-2/3

The bottom of the hitch panels should be approximately 470 mm (18-1/2 in.) (A) above the ground and parallel to the ground.

A-Hitch to Ground
