Adjusting Marker Length
Lower marker to ground. Loosen jam nuts and set screws (A) and align to length shown in table below. Dimension (B) is measured from the seed disk opener on outside planting unit to the bottom of marker disk. This is an approximate dimension and should be checked in the field.
NOTE:
On 4-Row Wide Machines with special marker kit, dimension (B) will still be from seed disk opener on outside planting unit to bottom of marker disk (C).
NOTE:
Seven-row machines must measure from the outside tractor tire.
| Machine |
Row Spacing |
Dimension |
| 4-Row |
91 cm (36 in.) |
2286 mm (90 in.) |
| |
97 cm (38 in.) |
2413 mm (95 in.) |
| 6-Row |
70 cm (27.5 in) |
2445 mm (96.25 in.) |
| |
76 cm (30 in.) |
2667 mm (105 in.) |
| |
91 cm (36 in.) |
3200 mm (126 in.) |
| |
97 cm (38 in.) |
3378 mm (133 in.) |
| 7-Row |
46 cm (18 in.) |
1829 mm (72 in.) |
| |
48 cm (19 in.) |
1930 mm (76 in.) |
| 8-Row |
76 cm (30 in.) |
3429 mm (135 in.) |
| 9-Row |
35 cm (15 in.) |
1965 mm (75 in.) |
| |
46 cm (18 in.) |
2286 mm (90 in.) |
| |
48 cm (19 in.) |
2743 mm (95 in.) |
| 11-Row |
35 cm (15 in.) |
2896 mm (90 in.) |
| |
46 cm (18 in.) |
2267 mm (108 in.) |
| |
48 cm (19 in.) |
3048 mm (114 in.) |
| 13-Row |
35 cm (15 in.) |
2267 mm (105 in.) |
| 15-Row |
35 cm (15 in.) |
3048 mm (120 in.) |
A-Set Screws

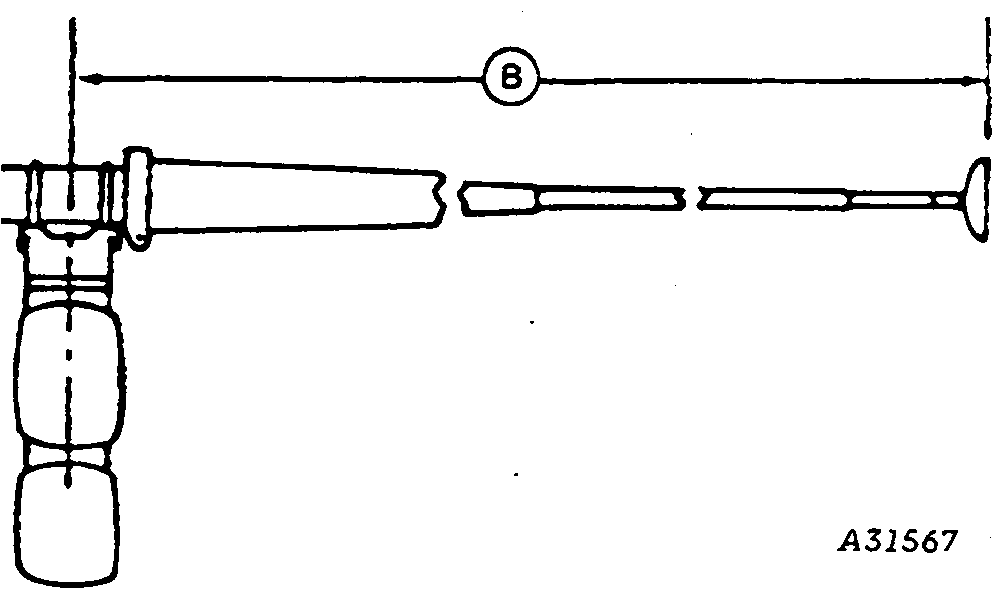

B-Dimension

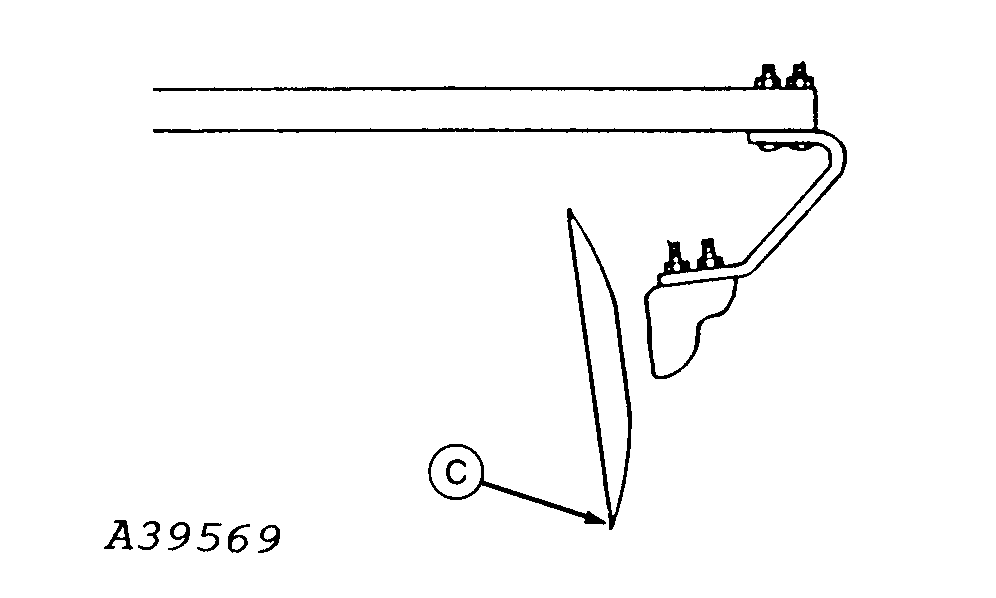

C-Marker Disk
|
