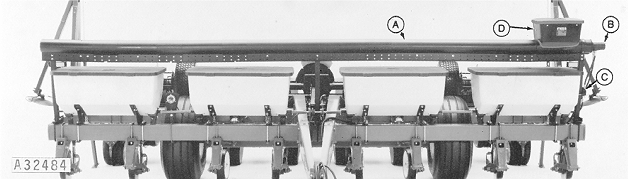

Auger Fill Attachment

A32484


A-Auger Fill Attachment


B-Hydraulic Motor


C-Shut-Off Valve


D-Fill Hopper

An auger fill attachment (A) is available for one point filling of all dry fertilizer. This attachment is driven by a

hydraulic motor (B) with a safety shut-off valve (C) located near the fill hopper (D).

OUO6074,0000242 -19-06MAR01-1/1
