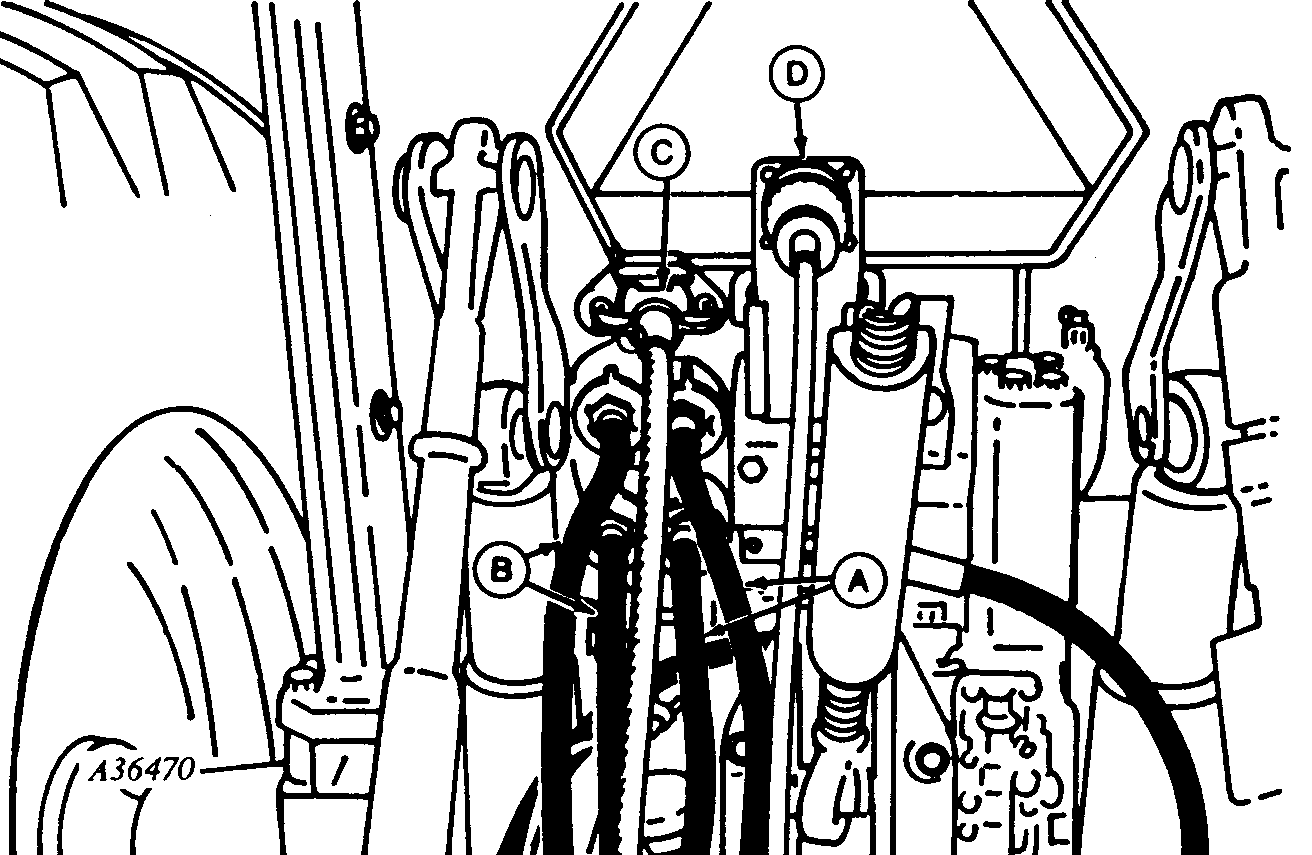

A-Machine Lift Hoses

B-Independent Marker Hoses

C-Seven Pin Connector

D-Monitor Harness Connector

CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

NOTE: If there are not enough SCV couplers, a power beyond kit is available. See your John Deere dealer.

Connect machine lift hoses (A) to SCV I.

If equipped with independent markers, connect marker hoses (B) to SCV II.

OUO6074,000026D -19-13MAR01-1/1
