CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

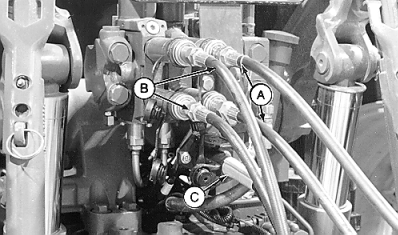

Connect machine lift hoses (A) to SCV I.
If equipped with independent markers, connect marker hoses (B) to SCV II.
A-Machine Lift Hoses B-Independent Marker Hoses C-Seven-Pin Harness
OUO6074,000026E -19-13MAR01-1/1
CAUTION:
Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.
