Connecting Hydraulic Hoses-8000 Series Row-Crop Tractors

CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

NOTE: If there are not enough SCV couplers, a power beyond kit is available. See your John Deere dealer.

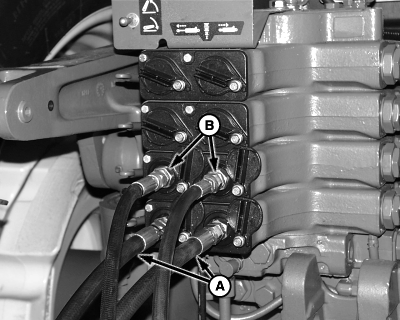

Connect machine lift hoses (A) into SCV I.

If equipped with independent markers, connect marker hoses (B) into SCV II.

A-Machine Lift Hoses
B-Independent Marker Hoses

OUO6074,0000270 -19-13MAR01-1/1
