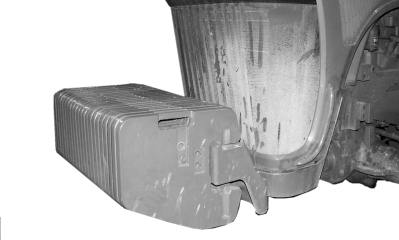

Weighting Front End

Install the proper amount of weight on the front of the tractor as recommended in your tractor operator's manual. For proper front end weighting, see the following implement code table.

Machine Implement Code
23/24R15NF 330
23/24R15NFP 380
23/24R15LF 475
24R20NF 435
24R20NFP 470
24R20LF 460
24R20LFP 530
31/32R15NF 440
31/32R15LF 595
31/32R15LFP 605



NF = Non Fertilizer

LF = Liquid Fertilizer With and Without Tanks

P = Pesticide Tanks

A50871

720016ROM,PT,J -19-05NOV02-1/1
