Inspecting Metering Units

NOTE: If using seed treatments, remove any buildup that may occur in bottom of hopper.

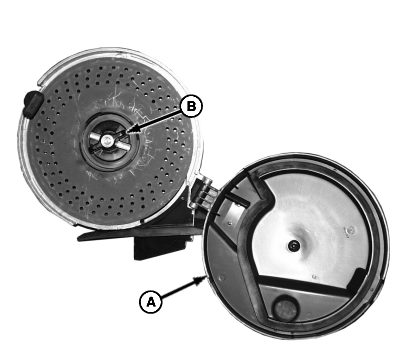

To inspect meter, lay hopper on side and open door (A) to remove seed disk. Turn meter hub (B) by hand to determine if mechanism is free of dirt, chaff or other foreign material. Inspect brush for gaps, hub seal for cracks and vacuum seal for cracks and wear areas. If replacement is necessary, see Service-End of Season section.

A-Door
B-Meter Hub

AG,OUO6074,1210 -19-04AUG00-1/3

NOTE: If using seed treatments, remove any buildup that may occur in bottom of hopper.

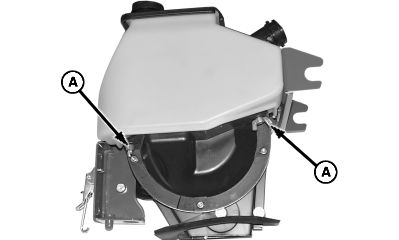

FINGER PICK-UP-Remove two wing nuts (A) and pull finger pick-up unit straight up to disengage it from two mounting studs and retainer ring.

IMPORTANT: Avoid damage to meter brush. Do not turn finger pick-up mechanism backwards.

Turn meter shaft by hand to determine if mechanism is free of dirt, chaff, or other foreign material. If mechanism is obstructed or further disassembly of finger pick-up unit is required, see Service-Every 50 Hours section.

A-Wing Nuts

AG,OUO6074,1210 -19-04AUG00-2/3

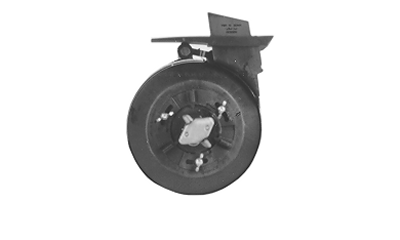

RADIAL BEAN METER-Turn metering assembly by hand to determine if mechanism is free of dirt, chaff or other foreign material. If mechanism is obstructed and further disassembly of seed meter is required, see Service-End of Season section.
