Setting Pump Drive Range

1. Remove spring-locking pins (A).

2. For LOW RANGE, place small gear in position (B) and large gear is position (C).

3. For HIGH RANGE, place small gear in position (C) and large gear in position (B).

4. Reinstall spring-locking pins (A).


A-Spring-Locking Pins
B-Position
C-Position

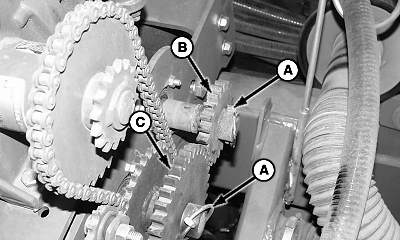

A52334

LOW RANGE Shown
