Opener Lock-Up

The openers can be locked in a raised position when the fertilizer attachment is not being used, or for storage.

AG,OUO6074,1340 -19-04AUG00-1/2

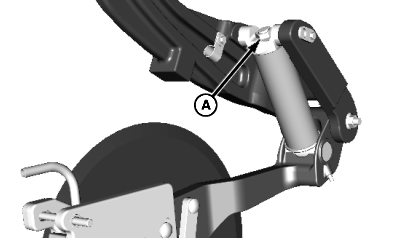

1. Loosen jam nut (A).

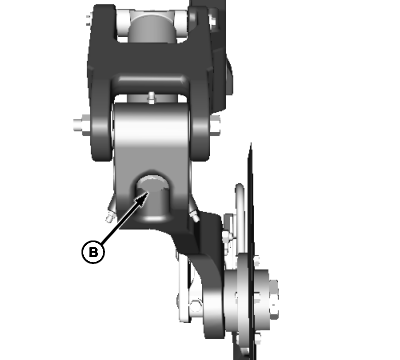

2. Tighten cap screw (B) until stop (C) hits opener frame (D).

3. Tighten jam nut.


A-Jam Nut
B-Cap Screw

A49384
A52335

AG,OUO6074,1340 -19-04AUG00-2/2
