Installing Heavy-Duty Spring-24R20

NOTE: Heavy-duty spring (black) is recommended for no-till and hard soil conditions to maintain proper soil penetration.

1. Remove nut (A) from old spring.

2. Loosen cap screw (B) from casting (C) until cap screw is almost free from casting.

3. Remove pin (D).

4. Remove cap screw (E) securing spring to casting and remove old spring.


A-Nut
B-Cap Screw
C-Casting
D-Pin
E-Cap Screw
F-Plates

H40777
H40778
H40779

AG,OUO6074,1353 -19-04AUG00-1/2

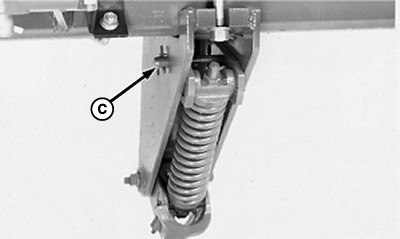

5. Install new spring (A) on cap screw.


A-New Spring
B-Plates
C-Pin

H40780
A46467
