Adjusting Marker Disk

The marker disk creates a furrow in the soil. This adjustment will change the size of furrow.

AG,OUO6074,1525 -19-07AUG00-1/2

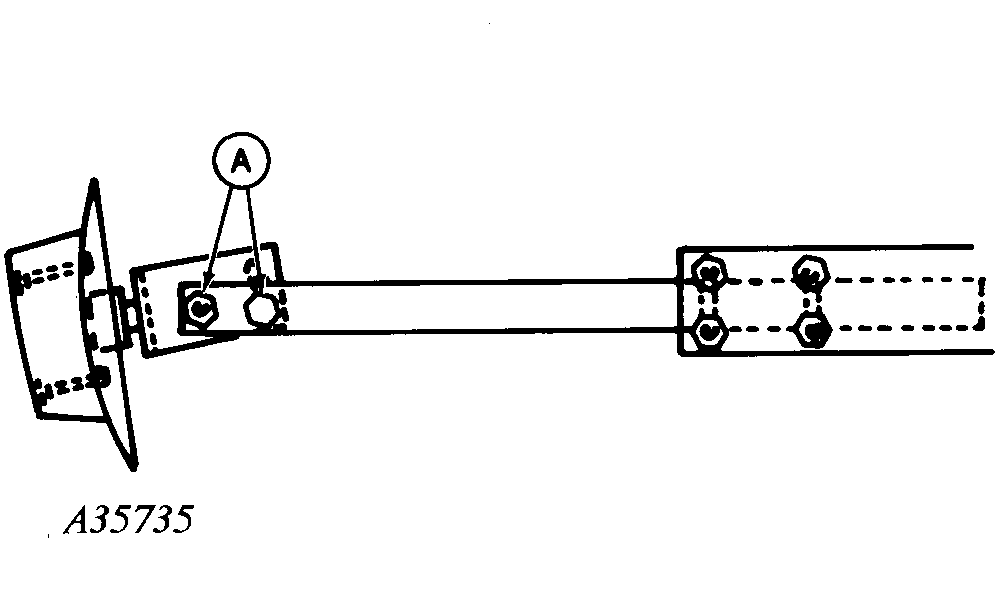

Loosen nuts on cap screws (A), adjust disk angle and tighten nuts to specification.

Specification

Cap Screw -Torque 240 N·m (175 lb-ft)


A-Nut

A35735
