Storing Machine

When planting is completed for one season, store the machine under cover with all parts in operating condition.

OM62304,160B -19-01MAY98-1/6

IMPORTANT: If the machine will be stored in the folded transport position, some settling of the hydraulic system may occur. If machine is going to be stored in this position, install storage locks on center two main frame wheels and lower machine onto storage locks.

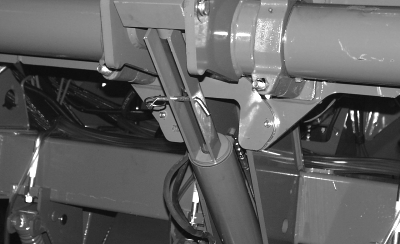

Remove storage locks (A) from storage position.

A-Storage Locks

OM62304,160B -19-01MAY98-2/6

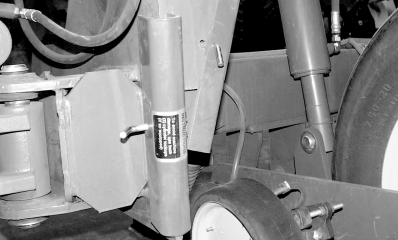

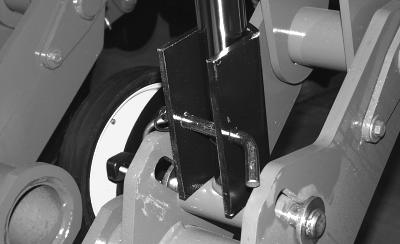

Raise machine and install storage locks onto both inner main frame wheel cylinders. Install pin and hair pin to hold in place.

Lower machine onto storage locks.

IMPORTANT: Install all storage locks on rockshaft cylinders or possible damage to machine can occur. The 24R20 has two cylinders per rockshaft.

NOTE: The rockshaft storage locks are longer than the split-row locks. Split-row locks are to be installed when planting 76 cm (30 in.) row spacing.

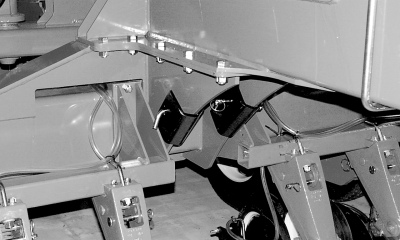

Raise rear rockshafts and install rockshaft storage locks.

OM62304,160B -19-01MAY98-3/6

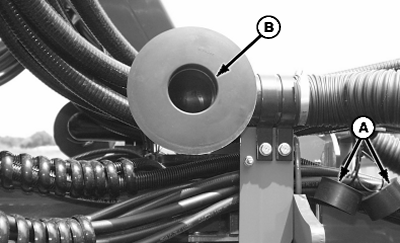

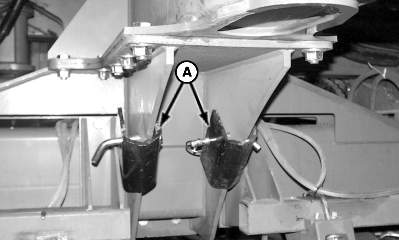

Install all plugs (A) into vacuum manifold bells (B).

A-Plugs
B-Manifold Bell

OM62304,160B -19-01MAY98-4/6

Paint all parts which are chipped or worn and require repainting.

Clean the machine thoroughly to remove dirt and trash which would hold moisture and cause rusting.

Lubricate the machine as outlined in the Lubrication section, and grease exposed cylinder rods.

Thoroughly lubricate chains with John Deere Multipurpose Spray Lube, TY6350, at the beginning of the idle period.

Empty and clean seed hoppers.

Inspect the machine for worn or broken parts. See your John Deere dealer during the off season so that parts or service can be acquired when the machine is not needed in the field.

Store the machine in a clean, dry place with the planting unit gauge wheels and firming wheels out of the sun.

Place handle for closing wheel downforce in long slot to relieve tension on closing wheels.

OM62304,160B -19-01MAY98-5/6

Remove seed disks from meter. (See VACUUM METER INSPECTION AND SERVICE in Service section.)

Clean meter housing, meter chamber and seed disk with mild detergent and soft brush.

Store disks (A) in shipping box or hang on wall.

IMPORTANT: Be sure to store seed disks away from extreme heat or direct sunlight. Do not leave disks in the meters during the off season. Do not store under heavy parts.

Clean air manifold system. (See CLEAN AIR MANIFOLD SYSTEM in Service section.)

Check for hydraulic leaks.

Check and clean out manifolds.

Check and clean vacuum meters.

Check and replace necessary vacuum meter seals.

A-Disk
