Connecting Hydraulic Hoses (60-70 Series) Four-Wheel Drive Tractors

causym CAUTION: To avoid injury from escaping hydraulic oil under pressure, relieve the pressure in the system by shutting off tractor and moving SCV levers in both directions before detaching hoses from the breakaway couplers.

Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

IMPORTANT: Case drain hose (A) must be connected to tractor OR placed in storage bracket (C) at ALL times to prevent damage to CCS fan and vacuum motor seals.

IMPORTANT: Fan motor/vacuum motor case drain hose MUST be attached to low-pressure drain connection PRIOR to inlet and return hoses being connected. Case drain MUST have LESS THAN 172 kPa (1.72 bar) (25 psi) or fan motor will be damaged.

IMPORTANT: Installation of a Low-Pressure Drain Line Kit is required if towing tractor is not so equipped. Refer to PROTECTING HYDRAULIC MOTOR SEALS-LOW-PRESSURE (CASE) DRAIN CONNECTION in Preparing Tractor section for appropriate kit.

IMPORTANT: DO NOT USE other ports at the rear of the tractor (such as power-beyond ports) which may be similar in appearance and size to low-pressure drain port. Due to high back-pressure (over 172 kPa [1.72 bar] [25 psi]), drain connection to these ports WILL RESULT in fan motor damage.

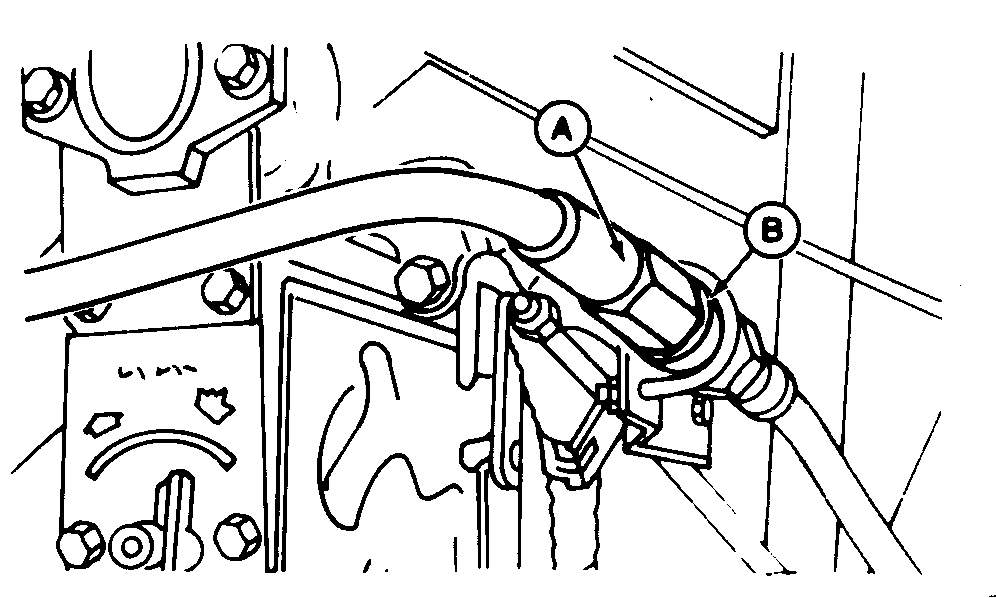

1. Attach case drain hose (A) to low-pressure drain coupler (B).

A37979
N45535
A51111

Case Drain Storage Position


A-Case Drain Hose
B-Low-Pressure Drain Coupler
C-Storage Bracket

OM62304,30B -19-01MAY98-1/2

NOTE: Not necessary to turn off tractor if attaching machine to John Deere Tractor with ISO couplers.

NOTE: For tractors without "Connect under Pressure" SCV, it is necessary to turn engine OFF and cycle SCV levers to relieve pressure in hoses.

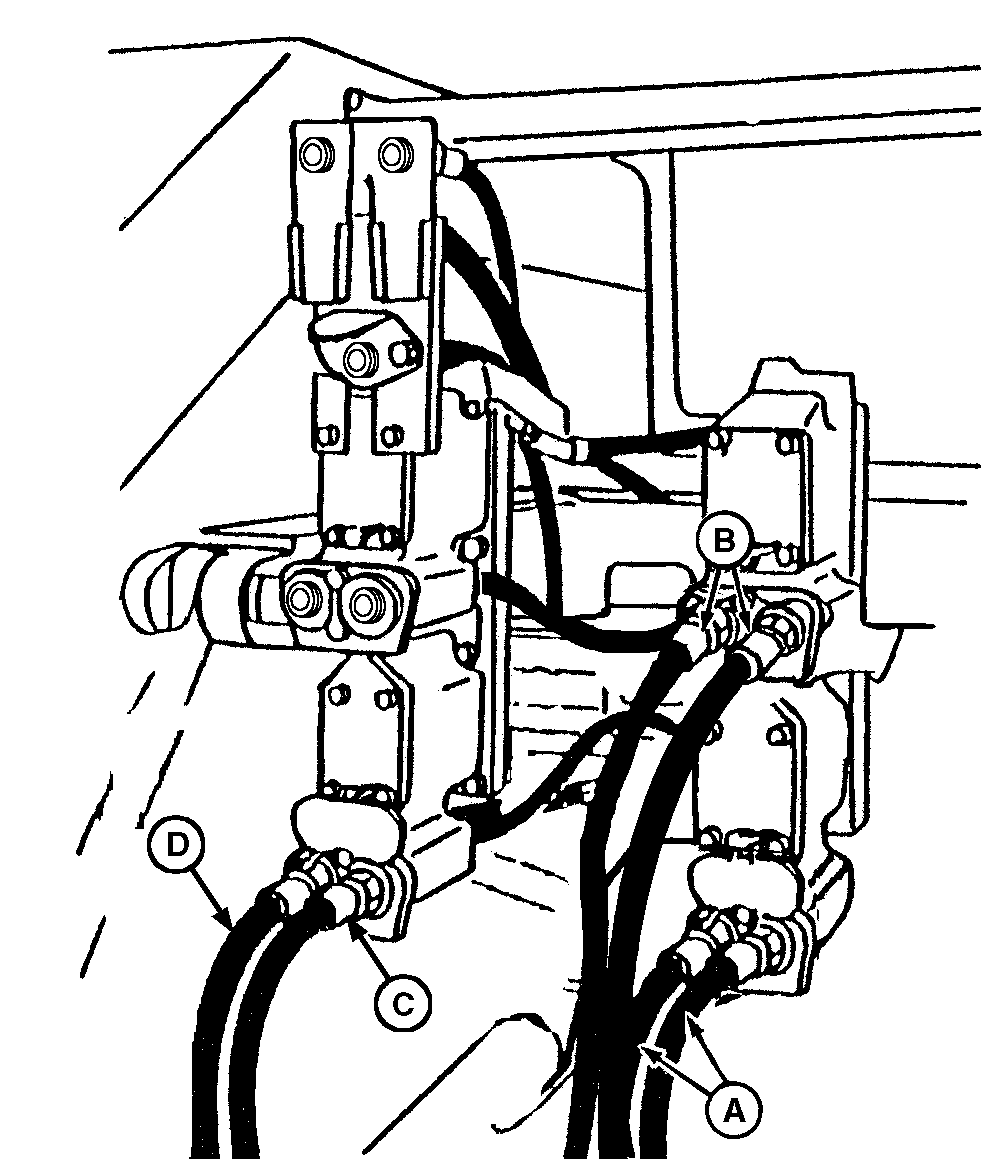

2. Insert machine hydraulic hoses (A) into SCV I.

3. INDEPENDENT MARKERS: If equipped with independent markers, connect marker hoses (B) into SCV II.

4. VARIABLE DRIVE: If machine is equipped with variable rate drive, connect pressure hose (C) and return hose (D) (with cap) into SCV III.

5. VACUUM METER: See CONNECTING VACUMETER heading in this section.


A-Machine Hydraulic Hoses
B-Marker Hoses
C-Variable Rate Drive Pressure Hose
D-Variable Rate Drive Return Hose

A51195

60-70 Series Illustrated

OM62304,30B -19-01MAY98-2/2
