Tightening Wheel Bolts

IMPORTANT: Check torque on wheel bolts prior to operation, after initial 10 hours of use and after every 50 hours.

Tighten wheel bolts (A) to specification.

Specification

Wing Frame Wheel Bolts -Torque 176 N·m 130 lb-ft
Center Frame Wheel Bolts -Torque 350 N·m 258 lb-ft

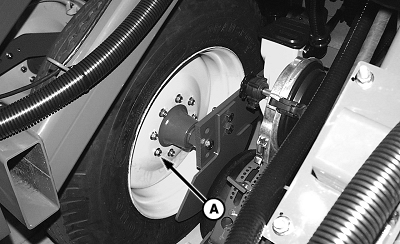

A50658

Center Frame Wheel Bolts Shown


A-Wheel Bolts

OUO1074,00000C6 -19-06MAR01-1/1
