Adjusting Marker Length

NOTE: Hitch must be in offset position for 24R15 and 32R15 configurations.

NOTE: Dimension (B) is measured from the outer most row unit that is actively planting seed.

1. With marker in down position, loosen lock nuts (A). Adjust to length shown below. Dimension (B) is measured from the center line of outer planting unit to marker disk. This is an approximate dimension and should be checked by measuring the distance between outer seed furrow and marker furrow after operation.

MACHINES DIMENSION (B)
16-Row Machine
761 mm (30 in.) Corn Rows		 6.477 m (21 ft 3 in.)
12-Row Machine
761 mm (30 in.) Corn Rows		 4.953 m (16 ft 3 in.)
23-Row Machine
381 mm (15 in.) Rows		 4.572 m (15 ft)
24-Row Machine
381 mm (15 in.) Rows		 4.763 m (15 ft 7.5 in.)
24-Row Machine
508 mm (20 in.) Rows		 6.350 m (20 ft 10 in.)
31-Row Machine
381 mm (15 in.) Rows		 6.096 m (20 ft)
32-Row Machine
381 mm (15 in.) Rows		 6.287 m (20 ft 7.5 in.)



2. Tighten lock nuts (A) to specification.

Specification

Lock Nuts -Torque 50 N·m (37 lb-ft)

A51116
A31567

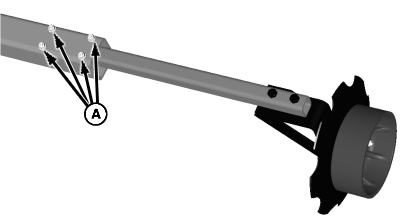

A-Lock Nuts

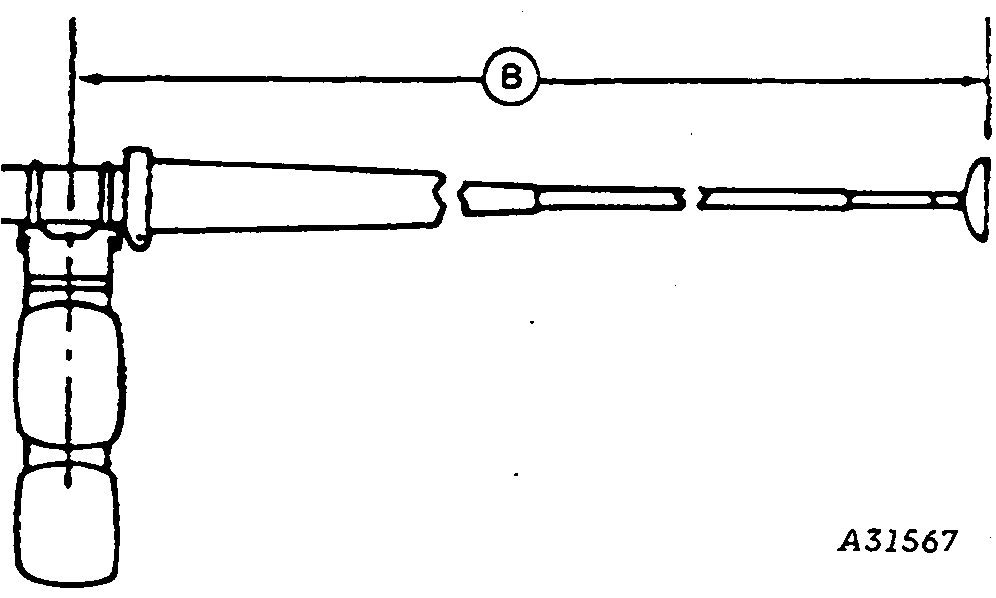

B-Dimension

OUO1074,0000105 -19-13MAR01-1/1
