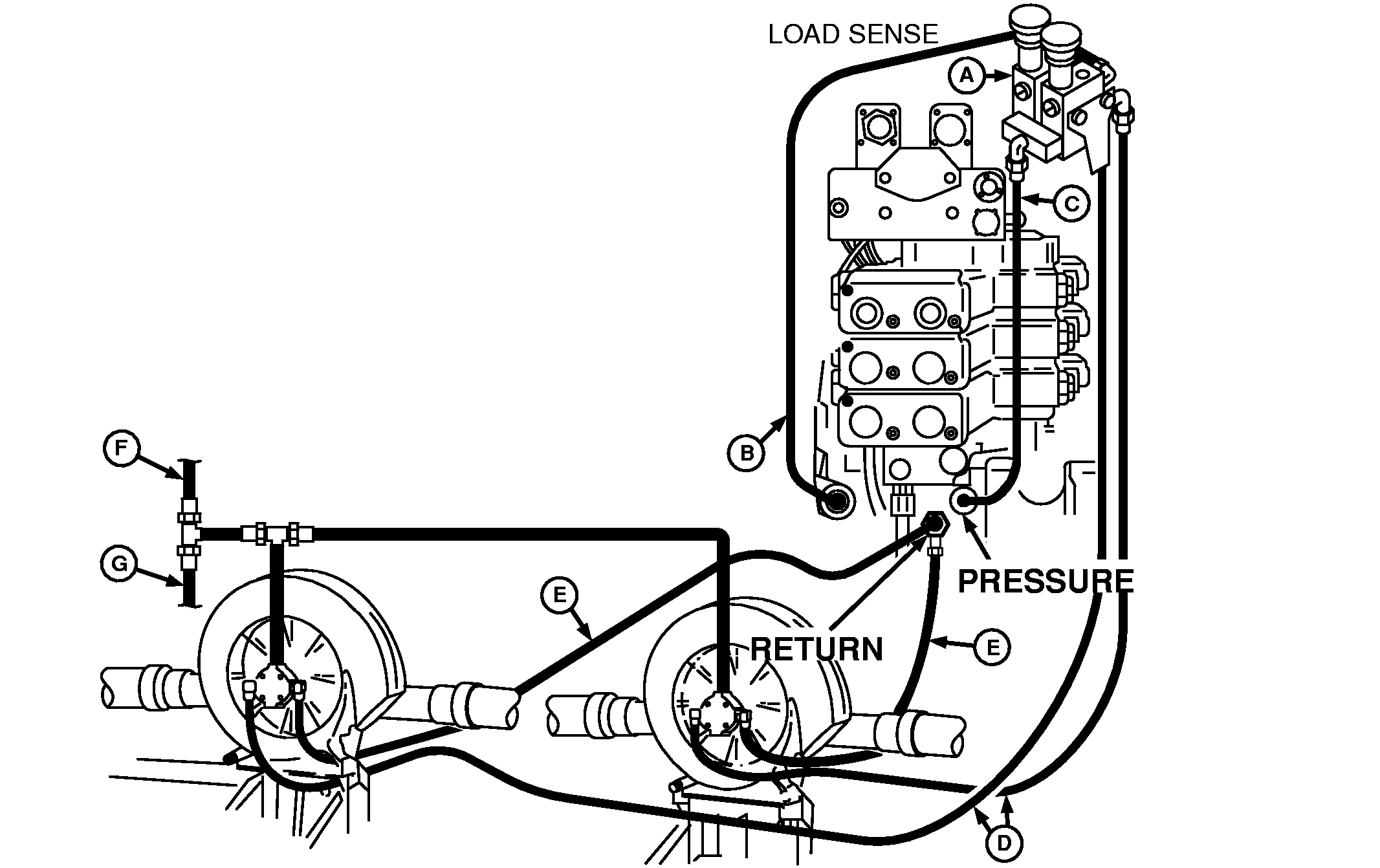

A-Planter Flow Control Valves
B-Load Sensing Hose

C-Pressure Hose
D-Regulated Pressure Hose

E-Motor Return Hose
F-Hose From CCS Fan Motor Case Drain

G-Case Drain Hose to Tractor

IMPORTANT: Damage to blower motor will occur if hoses are connected incorrectly. Check hydraulic connections before operating vacuum motor. See CHECKING HYDRAULIC CONNECTIONS in Preparing Vacuum Meter section.

NOTE: For non John Deere tractors, see dealer for vacuum motor hook-up.

1. Mount planter flow control valve (A) assembly on cab.

IMPORTANT: Regulated pressure hose (D) must be connected to left-hand (INLET) side of vacuum motor.

IMPORTANT: Ensure case drain hose is already connected to low pressure drain coupler.

NOTE: Case drain line is shared between fan motor and vacuum motor.

2. Connect load sensing hose (B) to load sensing port.

VACUMETER is a trademark of Deere & Company

OUO1074,0000192 -19-26MAR01-1/2

4. Connect motor return hose (E) to return port.

The planter flow control valves (A) will be used to control vacuum level.

OUO1074,0000192 -19-26MAR01-2/2
