Connecting Frame Control Harness

NOTE: The frame control harness has the plastic connector.

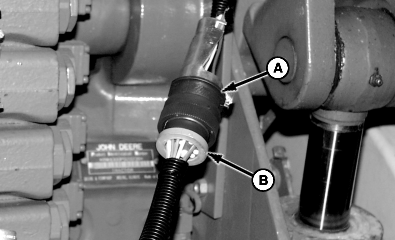

Connect 18-pin frame control harness (A) to machine frame harness (B).


A-Frame Control Harness
B-Machine Frame Harness

A47887

OUO1074,0001397 -19-24AUG01-1/1
