Installing Storage/Service Locks

CAUTION: Lower machine to ground before working on any hydraulic components or welding.

IMPORTANT: Storage/service locks are not to be used as transport locks.

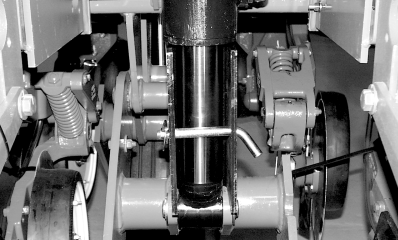

When doing any maintenance or storing machine, raise machine and install storage/service locks onto both inner main frame wheel cylinders as shown. Install pin and hair pin to hold in place.

OUO1074,00013A2 -19-21SEP01-1/4

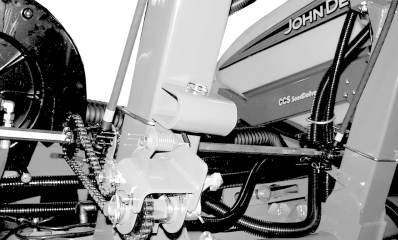

When doing maintenance on machine when unfolded in plant position, raise machine and install service locks on right-hand and left-hand wing wheel cylinders as shown. Install pin and hair pin to hold in place.

OUO1074,00013A2 -19-21SEP01-2/4

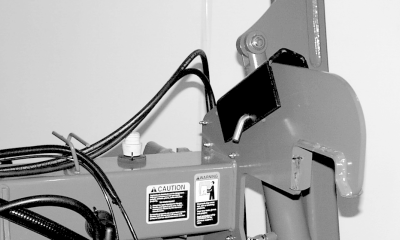

When storing machine in folded position, install rockshaft storage locks. Install pin and hair pin to hold in place.

OUO1074,00013A2 -19-21SEP01-3/4

IMPORTANT: On the 24R20 machine, the right-wing and left-wing rockshafts have two cylinders each that must have cylinder locks installed or damage to machine could occur.

NOTE: The rockshaft storage locks are longer than the split-row locks. Split-row locks are to be installed when planting 76 cm (30 in.) row spacing.

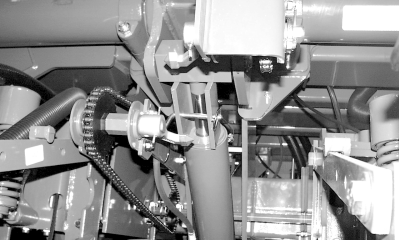

When planting with 76 cm (30 in.) row spacing, install split-row locks on right-hand and left-hand rockshafts as shown. Install pin and hair pin to hold in place.
