Changing Vacuum Meter Brush

1. Open vacuum meter.

OUO1074,00013FA -19-30JUL02-1/2

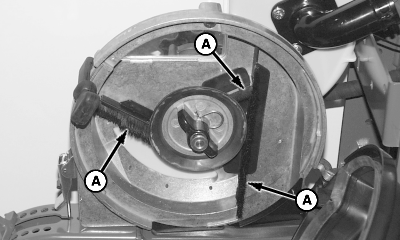

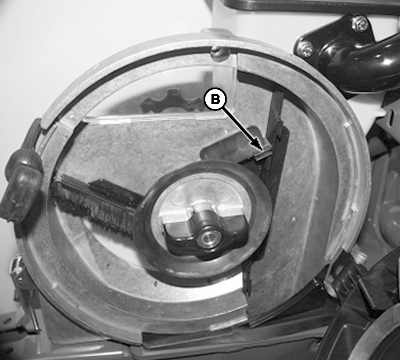

2. Pull or slide existing brushes (A) to remove from clips (B).

3. Install new brushes.


A-Brushes
B-Clips

A49838
A49839

OUO1074,00013FA -19-30JUL02-2/2
