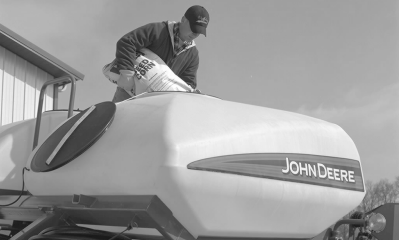

Filling CCS Tanks

CAUTION: Do not operate CCS blower without tank lids installed. Harmful chemicals can be blown into face and seed lines will plug.

CAUTION: Follow chemical manufacturers precautions when handling parts coated with seed treatments. Use proper skin, eye and respiratory protection.

IMPORTANT: Cleanout any buildup of seed treatments or talc between CCS tank fills.

IMPORTANT: Keep seed free of debris. Debris will cause blockage at CCS nozzles. Optional fill screen is available, see your John Deere dealer.

IMPORTANT: Clean seed level sensor prior to filling of seed tanks

See SEED TREATMENT RECOMMENDATIONS in Operating Vacuum Meter section.

For best performance, even seed level in tanks after filling to minimize amount of seed remaining in tanks when planting ends. Recommend using stiff bristled 1372 mm (4.5 ft) handle 203 mm (8 in.) wide broom to level seed when CCS tanks are full and after low tank level sensor warning light comes on.

OUO1074,0001401 -19-12AUG02-1/1
