Removing Seed Hopper Assembly From Row Unit

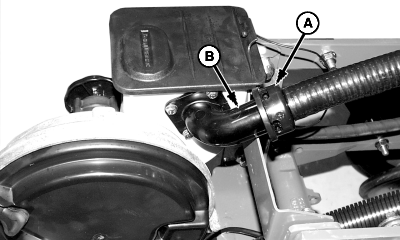

1. Rotate CCS seed delivery hose (A) counterclockwise until it unsnaps from hopper fill neck (B) and pull hose off.


A-Seed Delivery Hose
B-Hopper Fill Neck

A49955

OUO1074,000140A -19-16AUG02-1/4

2. Rotate lock pin (A) 180 degrees until the word "locked" is on the bottom.

3. Pull Pro-Shaft Drive cable (B) from gearbox housing (C).


A-Lock Pin
B-Cable
C-Gearbox Housing

A49899

OUO1074,000140A -19-16AUG02-2/4

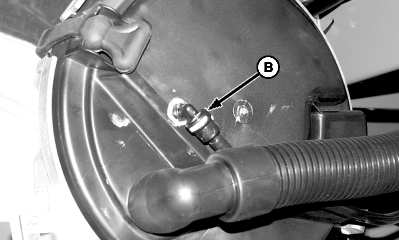

4. VACUUM METERS ONLY: Remove vacuum meter hose (A) and vacuum gauge hose (B) if applicable.


A-Vacuum Meter Hose
B-Vacuum Gauge Hose

A49901
A49951

OUO1074,000140A -19-16AUG02-3/4

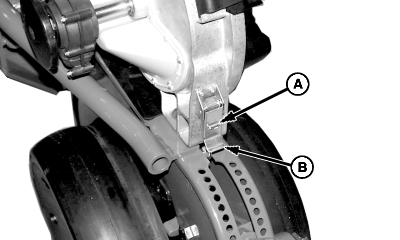

5. Push down on clip (A) while lifting up on clamp (B) to unlatch meter assembly from row unit.

6. Lift up and pull back to remove meter assembly from row unit.


A-Clip
B-Clamp

A49900

OUO1074,000140A -19-16AUG02-4/4
