Installing Seed Hopper Assembly to Row Unit
1.

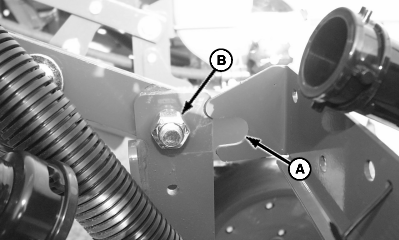

Push hopper assembly notch (A) over cap screw (B).
A-Notch
B-Cap Screw
|
|
|
|
OUO1074,0001410 -19-21AUG02-1/6
|
|
2.

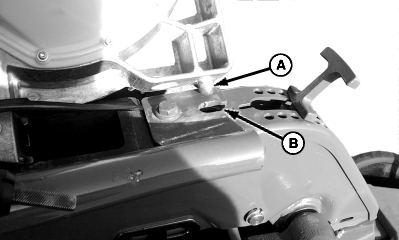

Place nipple (A) on bottom of meter into hole (B) on row unit.
A-Nipple
B-Hole
|
|
|
|
OUO1074,0001410 -19-21AUG02-2/6
|
|
3.

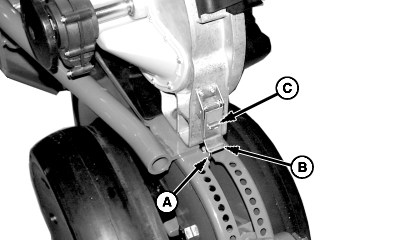

Place hook (A) as shown and latch clamp (B) ensuring that clip (C) snaps securing clamp.
A-Hook
B-Clamp
C-Clip
|
|
|
|
OUO1074,0001410 -19-21AUG02-3/6
|
|
4.
VACUUM METERS ONLY: Install vacuum meter hose (A) and vacuum gauge hose (B) if applicable.
A-Vacuum Meter Hose
B-Vacuum Gauge Hose
|
|
|
|
OUO1074,0001410 -19-21AUG02-4/6
|
|
5.
Push Pro-Shaft Drive cable (B) into gearbox housing (C).
6.
Rotate cable lock pin (A) 180 degrees until the word "locked" is on top.
A-Lock Pin
B-Pro-Shaft Drive Cable
C-Gearbox Housing
|
|
|
|
OUO1074,0001410 -19-21AUG02-5/6
|
|
7.
Push CCS seed delivery hose (A) onto hopper fill neck (B) and rotate clockwise until it snaps into place.
A-Seed Delivery Hose
B-Hopper Fill Neck
|
|
|
|
OUO1074,0001410 -19-21AUG02-6/6
|
|
