Operating CCS System When Planting Sorghum

IMPORTANT: Remove covers before switching to crop with larger seed. Larger seed will not come out of tanks with covers installed. Tanks will then have to be drained, covers removed, and refilled.

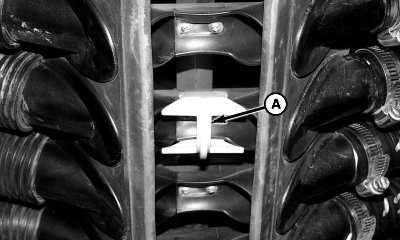

Covers (A) must be installed over all nozzles prior to filling tank.

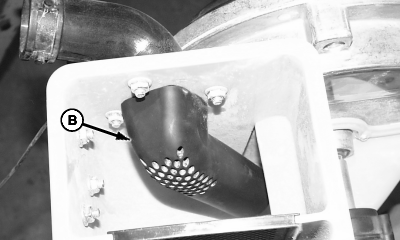

Remove elbow (B) with small holes from mini hoppers.

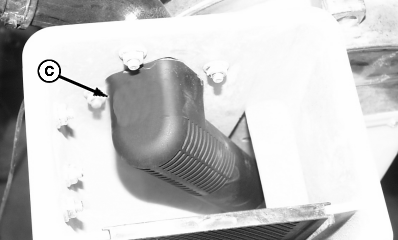

Install elbow (C) with slotted holes in mini hoppers.

A-Cover
B-Elbow
C-Elbow (Sorghum)

OUO1074,000141B -19-29AUG02-1/1
