Partially Cleaning Out CCS Tanks

To remove only a portion of seed from CCS tanks, there is a small variable cleanout door that can be opened or closed to control the amount of seed being removed.

OUO1074,0001425 -19-08NOV02-1/2

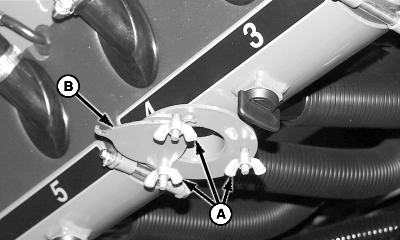

Loosen wing nuts (A) and rotate door (B) until desired amount of seed is coming out.

A-Wing Nuts
B-Door

OUO1074,0001425 -19-08NOV02-2/2
