Disabling or Enabling Fertilizer Drive

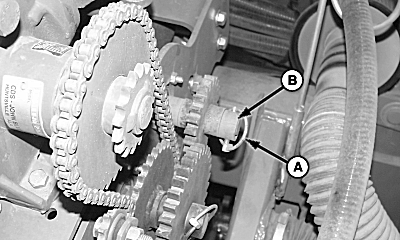

1. To disable fertilizer drive, remove pin (A) install bushing (B) in position shown. Reinstall pin.

A51058

Disable Fertilizer Drive

OUO1074,0001426 -19-11NOV02-1/2

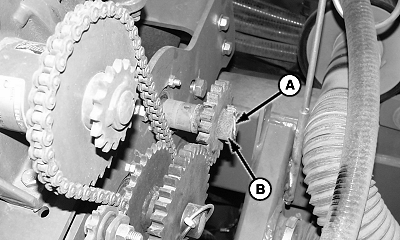

2. To enable fertilizer drive, remove pin (A) and install bushing (B) in position shown. Reinstall pin.

A51059

Enable Fertilizer Drive

OUO1074,0001426 -19-11NOV02-2/2
