Cleaning Vacuum Frame Tubes-All Machines

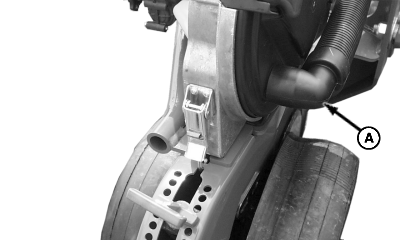

NOTE: Disconnect vacuum hose (A) at the meter not at the frame.

1. Disconnect one vacuum hose on the outer and inner ends of each wing.

2. Disconnect one hose to the left and to the right of center on the rear center section.

3. Turn on vacuum blowers and set hydraulic flow to 75 percent in tractor.

4. Let vacuum blowers run for 10 minutes.

5. Shut vacuum blowers off and replace hose on row units.

A-Vacuum Hose

OUO1074,0001431 -19-11DEC02-1/1
