Machines Equipped With Drawbar Hitch

Removing Quick Coupler

1. Attach hoist (A) to quick coupler (B) and apply a small amount of tension.


A-Hoist
B-Quick Coupler

A37085

OUO1074,000149B -19-27JUN03-1/3

NOTE: Left-hand illustrated. Repeat for right-hand.

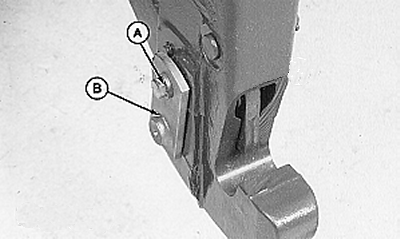

2. Remove cap screw (A) and draft-link pin (B).


A-Cap Screw
B-Draft-Link Pin

A46000

OUO1074,000149B -19-27JUN03-2/3

3. Remove quick-lock pin (A) and center-link pin (B) from center link (C). Raise hoist and remove quick coupler.

Install Drawbar Support

All 8000 and 9000 Series tractors must have a heavy-duty drawbar support installed. See your John Deere Dealer for parts.


A-Quick-Lock Pin
B-Center-Link Pin
C-Center Link

A37087

OUO1074,000149B -19-27JUN03-3/3
