Disengaging Meter Drive

Vacuum Meter

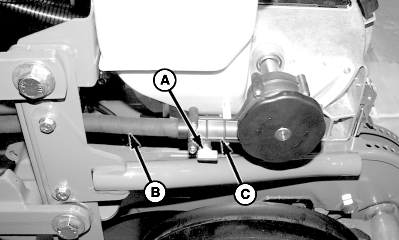

1. Rotate lock pin (A) 180 degrees until the word "locked" is on the bottom.

2. Pull Pro-Shaft Drive cable (B) approximately 38 mm (1.5 in.) from gearbox housing (C).

3. Rotate lock pin (A) 180 degrees until the word "locked" is on the top.

A49899


A-Lock Pin
B-Cable
C-Gearbox Housing

OUO1074,00014C1 -19-21JUL03-1/2

Mechanical Meter

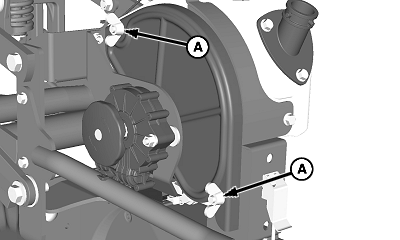

1. Loosen wing nuts (A) and rotate shield.

2. Remove pin (B).

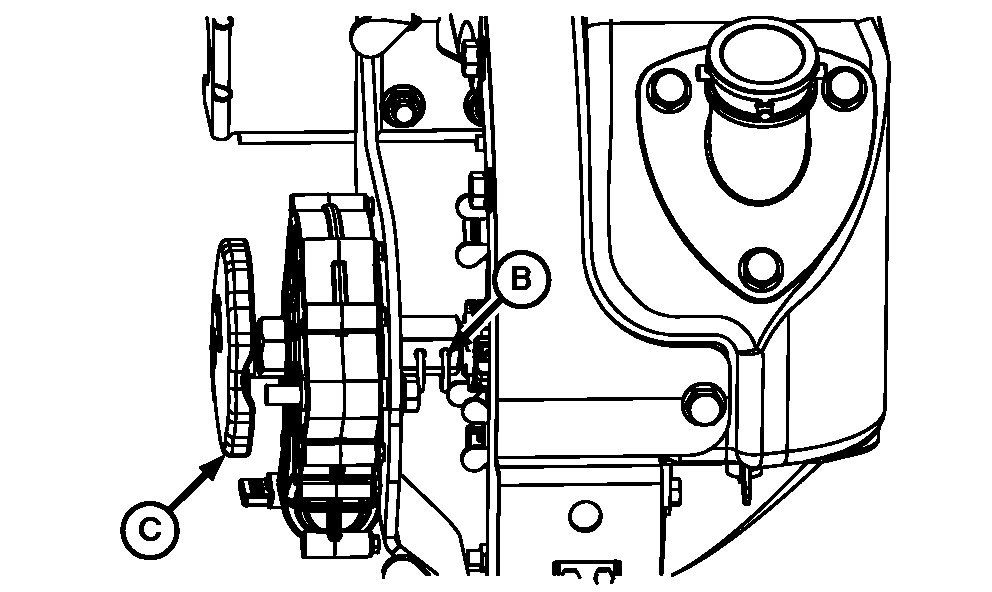

3. Pull handle (C) outward to disengage from meter.

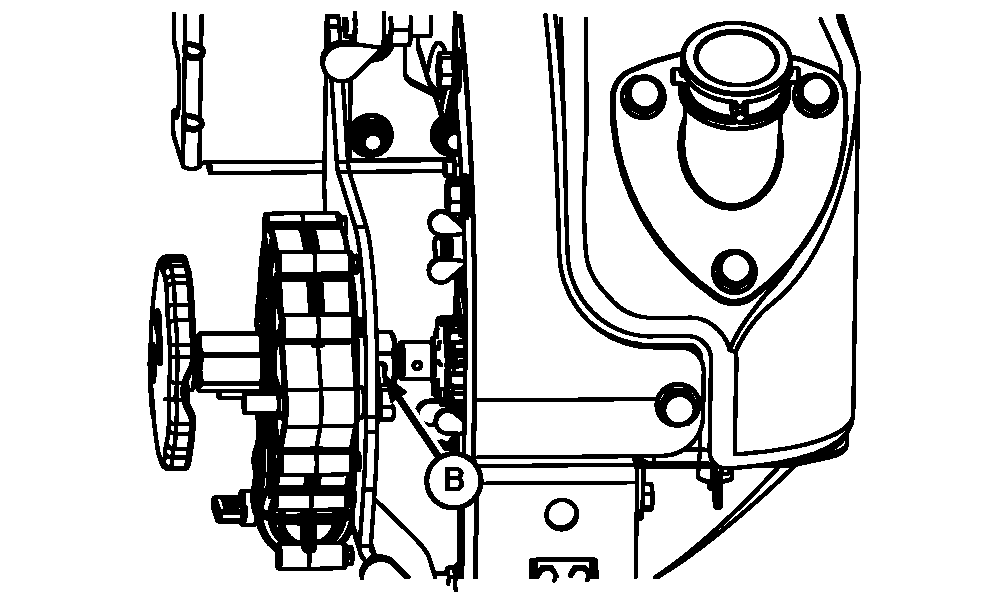

4. Reinstall pin (B) as shown.


A-Wing Nuts
B-Pin
C-Handle

A52487
A52474
A52475

OUO1074,00014C1 -19-21JUL03-2/2
