Lubrication-Every 50 Hours

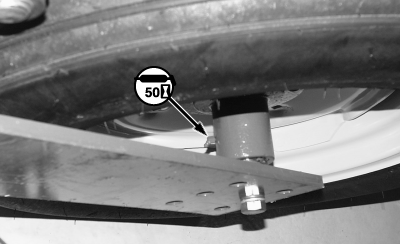

A50622

Wing Wheel Bearings

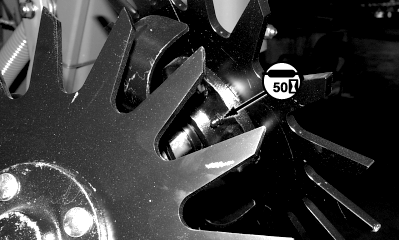

A47899

Row Cleaner

OUO6023,00013B2 -19-16MAR01-1/3

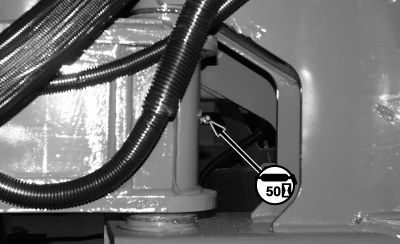

A50623

Fold Joints

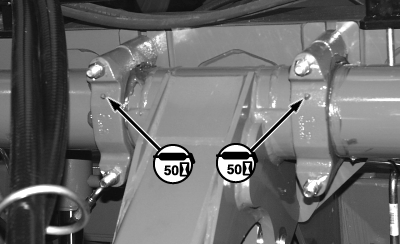

A50624

Pivot Point

OUO6023,00013B2 -19-16MAR01-2/3

Oil lower spring pivot pins every 50 hours. Oil will prevent top of pin from rusting.

A47157
A51069

Single-Disk Fertilizer Opener-38 cm (15 in.) Machines

OUO6023,00013B2 -19-16MAR01-3/3
