Adjusting Contact Link

1. Raise machine from plant position until it is at desired height for machine to stop planting.

OUO6023,000149D -19-17SEP02-1/2

2. Loosen adjustment bolt (A) and slide forward until it touches stop plate (B).

3. Tighten bolt to specification.

Specification

Bolt -Torque 345 N·m (255 lb-ft)

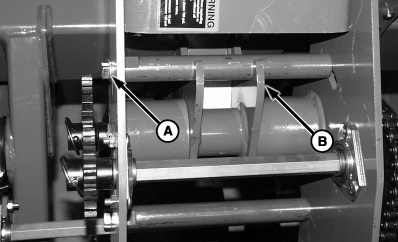

A-Bolt
B-Stop Plate

A50310
