Adjusting Contact Link Air Bag Pressure

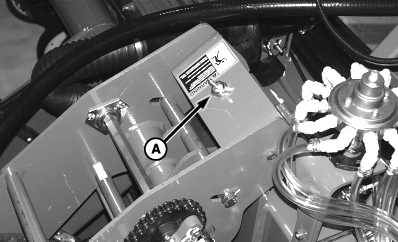

Adjust airbag pressure (A) on contact link to specification.

Specification

Airbag -Pressure 620 kPa (6.20 bar) (90 psi)


A-Airbag Pressure

A50311

OUO6023,000149E -19-17SEP02-1/1
