Changing Population Settings-Mechanical Transmission

Consult appropriate planting rate chart to determine desired sprocket combinations.

OUO6023,000149F -19-18SEP02-1/2

2. Pull chain tightener (B) downward and fasten with hook (A).

3. Remove required number of rubber sprocket spacers (C).

4. Remove chain from sprockets. Slide desired driver and driven sprockets (D) into alignment with chain tightener and replace chain.

5. Replace all rubber sprocket spacers on upper and lower shafts.

6. Remove hook from chain tightener and reposition in storage clip.

7. Switch spur gears (E) to change high/low settings as necessary.

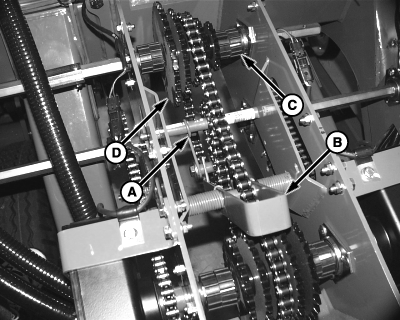

A-Hook
B-Tightener
C-Spacers
D-Sprocket

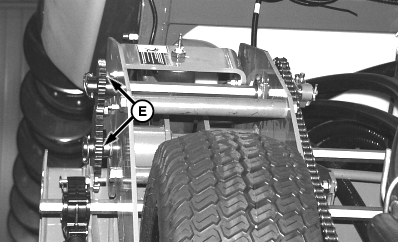

E-High/Low Range Spur Gears
